Конвертер RS485 в Ethernet USR-N540-H7-4

Конвертер RS485 в Ethernet USR-N540-H7-4

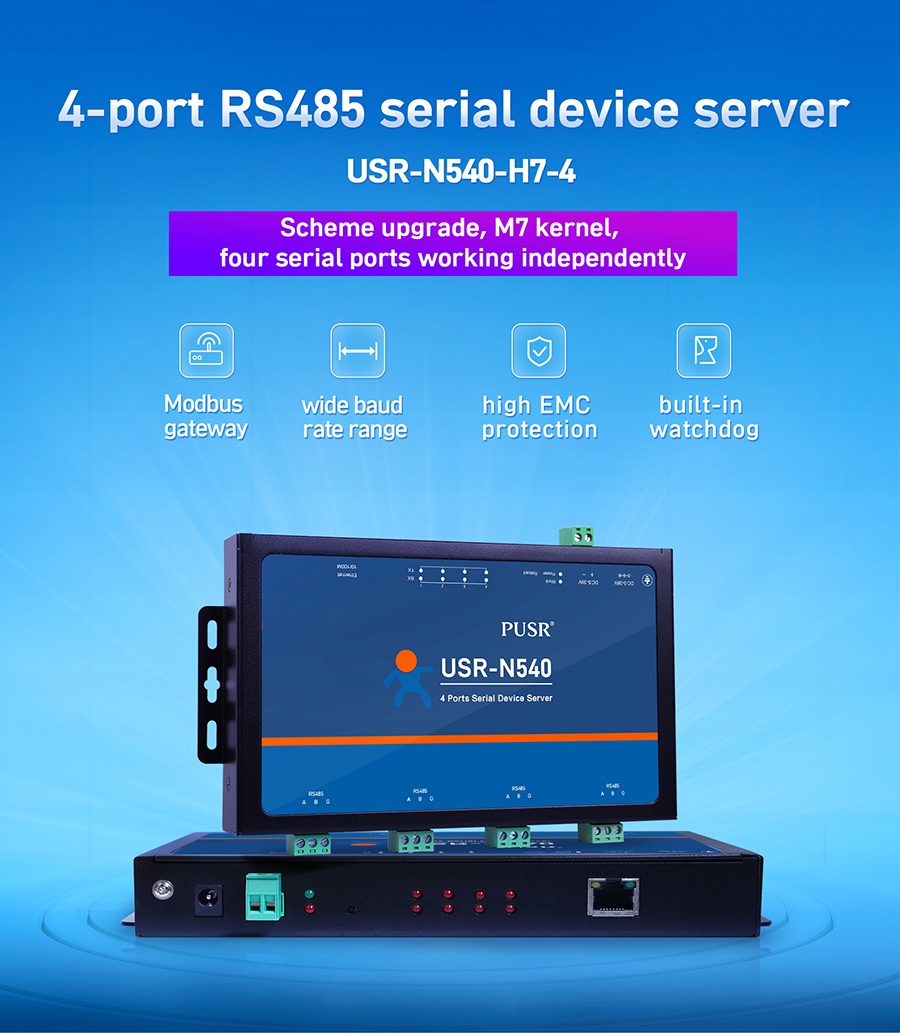

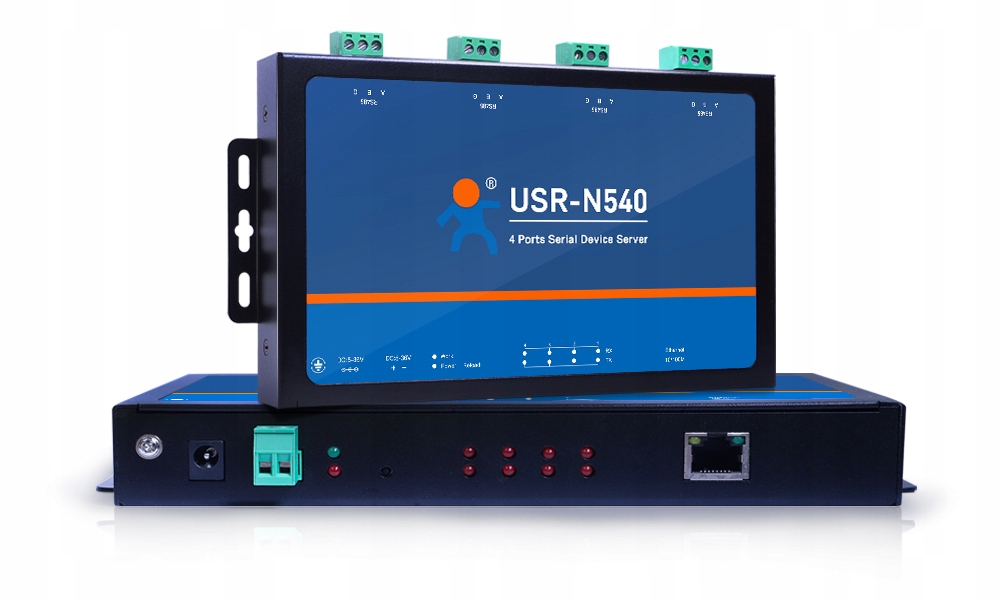

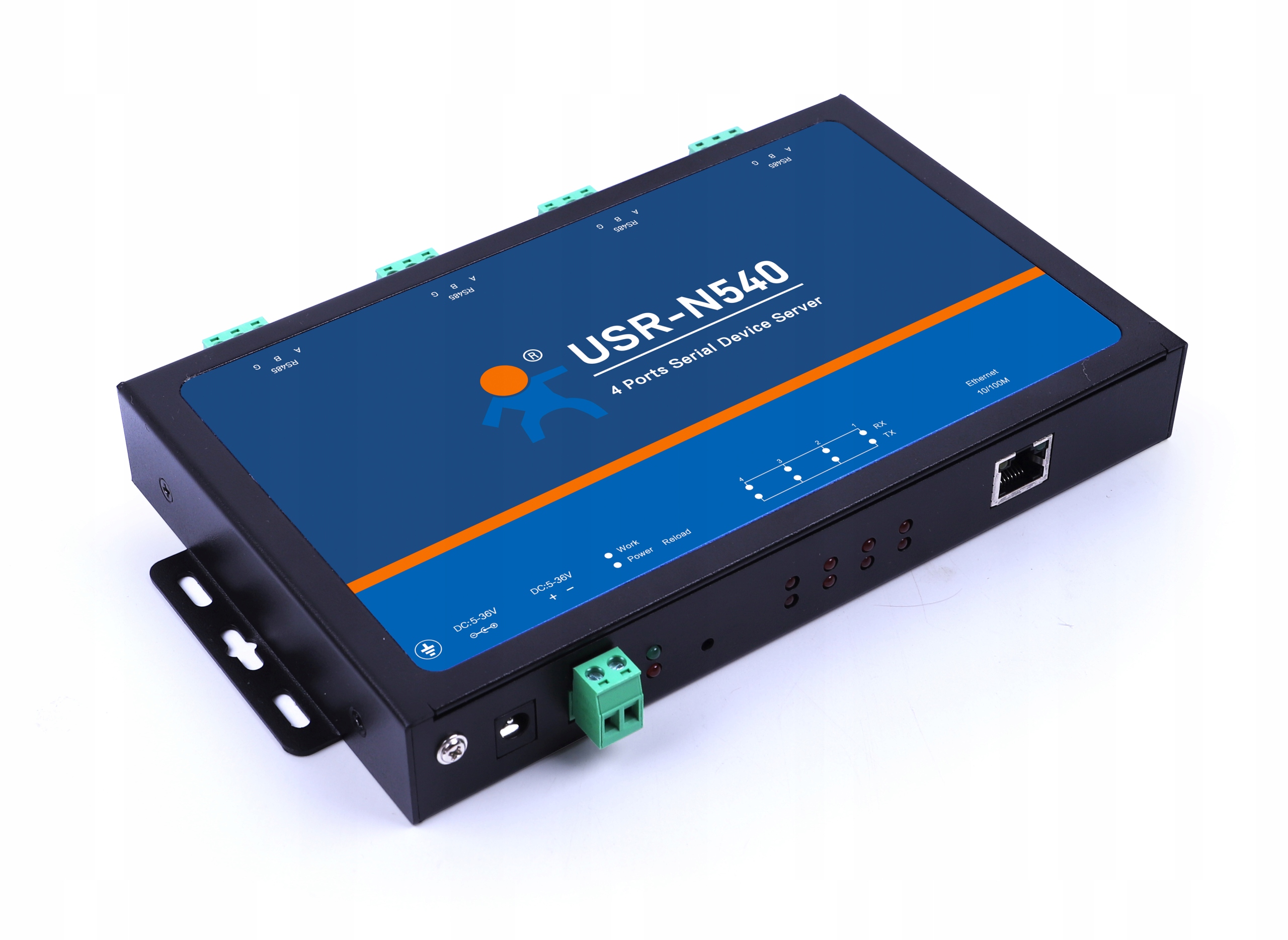

USR-N540-H7-4 is a 4-port RS485 to ethernet Converters. USR IOT's RS485 to ethernet Converters USR-N540 can realize bi-directional transparent transmission between RS485 and network.

• 4-port RS485 Serial to Ethernet Converters
• Power supply accepts wide voltage input range DC 9-36V
• Support TCP server/client, UDP server/client,https client, Virtual COM
• Support Modbus RTU to Modbus TCP, Modbus Polling
• Support flow control XON/XOFF
• Support 4 RS-485 Ports to TCP/IP 10/100Base-T(X) self-adaptive Ethernet interface
• Configuration via Web Server page, AT commands, and Windows Utility
• MQTT/SSL/Modbus RTU to JSON/SNMP/Telnet/Edge Computing(Special firmware, contact sales)

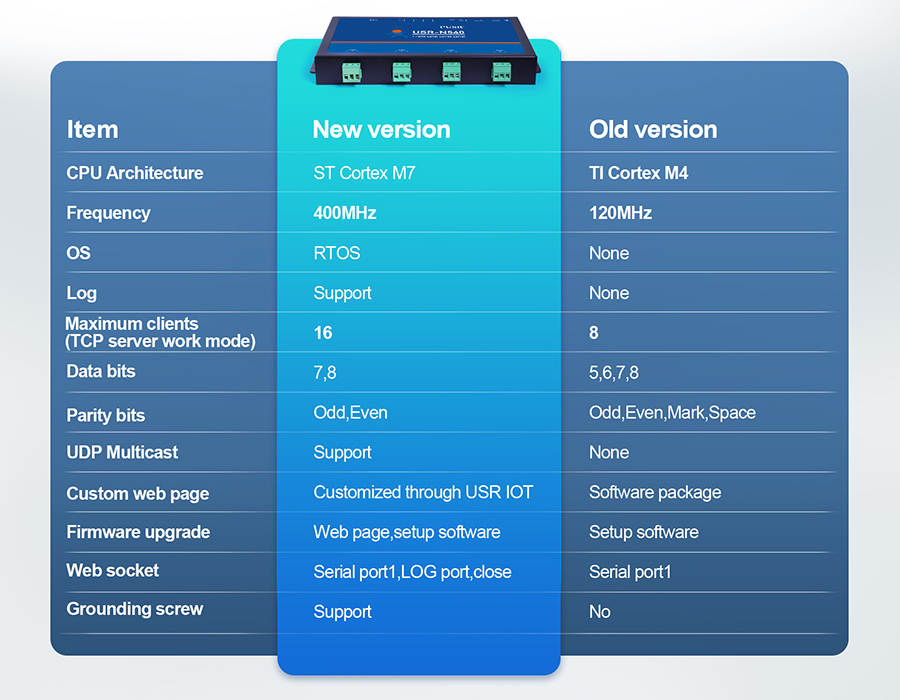

Отличия от более ранней версии N540

В комплекте:

1. RS485 TO ETH USR-N540-H7-4
2. Блок питания сетевой
