Sony SL-HF950 . 0523

Видеомагнитофон :

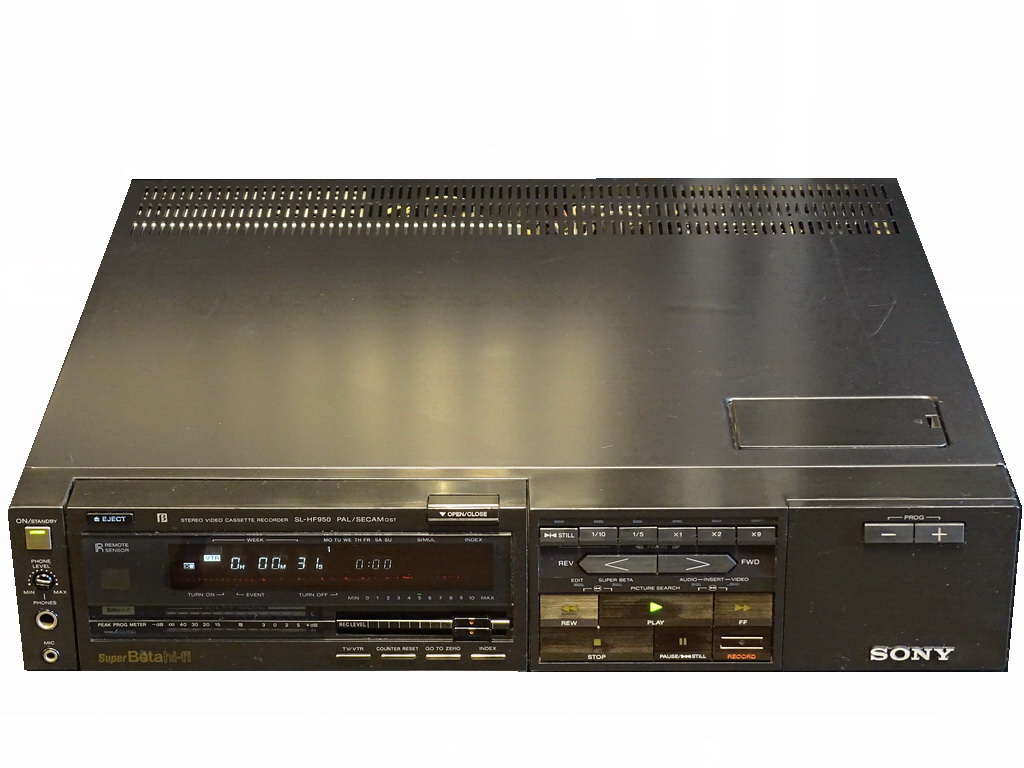

Sony SL-HF950 Betamax

Технические характеристики:

• Система
• Video recording system
• Rotary two-head helical scanning
• Audio recording system
• Beta hi-fi PAL system (2 channels)
• (Recording on the conventional audio is monoaural.)
• Видео signal
• CCIR standards, PAL colour
• Aerial input
• 75-ohm, asymmetrical aerial socket
• Channel coverage
• VHF: Western European channels
• E2 - E12
• UHF: Western European channels
• E21 - E68
• (Up to 30 programmes can be preset.)
• RF output signal
• UHF channels E30 to E39 (variable)
• 75 ohms, unbalanced
• Видео
• Horizontal resolution
• 280 lines (Super Beta PRO mode)
• Beta hi fi PAL sound
• Frequency response
• 20 Hz to 20 kHz (MPX FILTER OFF)
• Wow and flutter
• Less than 0.005 % WRMS
• Dynamic range
• More than 80 дБ
• Inputs and outputs
• Video input
• VIDEO IN: BNC connector
• 1.0 V (p-p)
• 75 ohms, unbalanced,
• sync negative
• Video output
• VIDEO OUT: BNC connector
• 1.0 V (p-p)
• 75Ohms, unbalanced,
• sync negative
• Аудио inputs
• AUDIO IN: 2 phono jacks
• 47 kilohms, -10 dBs
• (0 d Bs = 0.775 V rms)
• Microphone: -60 dBs, for
• low-impedance microphone
• Аудиоoutputs
• AUDIO OUT: 2 phono jacks
• Load impedance less than 10 kilohms
• -10 dBs with 47 kilohms load,
• unbalanced
• Headphones: Stereo phone jack
• - 26dBs, 80hms
• Video/audio output
• 21-pin EUROCONNECTOR
• Tape transport
• Tape speed
• 18.73 мм / сек.
• Maximum recording time
• 2 hours 10 min. (with Sony L-500 cassette)
• 3 hours 15 min. (with L-750)
• Fast forward/rewind time
• Within 5 мин. (with L-500)
• Timer
• Clock
• Crystal lock
• Time indication
• 24-hour cycle
• Timer setting Only for recording
• 6 events/3 weeks, adjustable for any
• day or for all 7 days of the week
• or for every week
• Генерал
• Power requirements
• 110-240v AC, 50-60 Hz
• Power consumption
• 39W
• Dimensions
• Approx. 430 КС 95 КС 405мм (в / Х / д)
• (17 x 3 3/4 x 16 inches) including
• projecting parts and controls
• Weight
• Approx. 10.5 kg (23 lbs) net

Состояние:

- визуальный: см. раздел изображений;

- технический:

Я ПРИЗЫВАЮ ВАС ПОСМОТРЕТЬ МОИ ДРУГИЕ АУКЦИОНЫ.

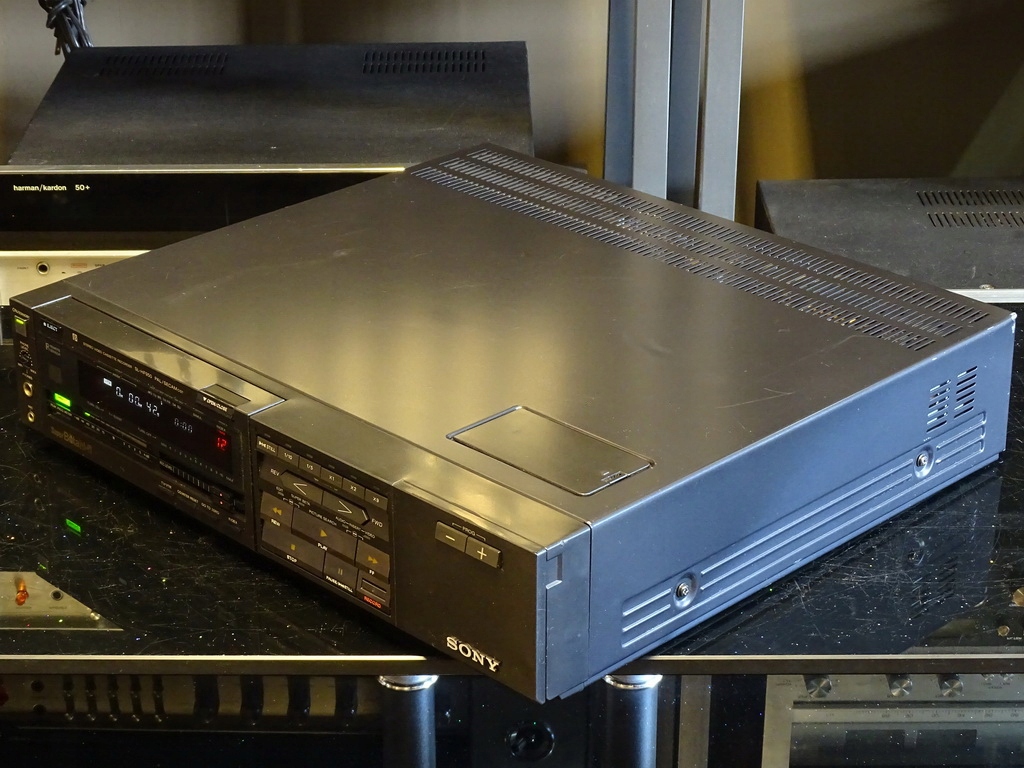

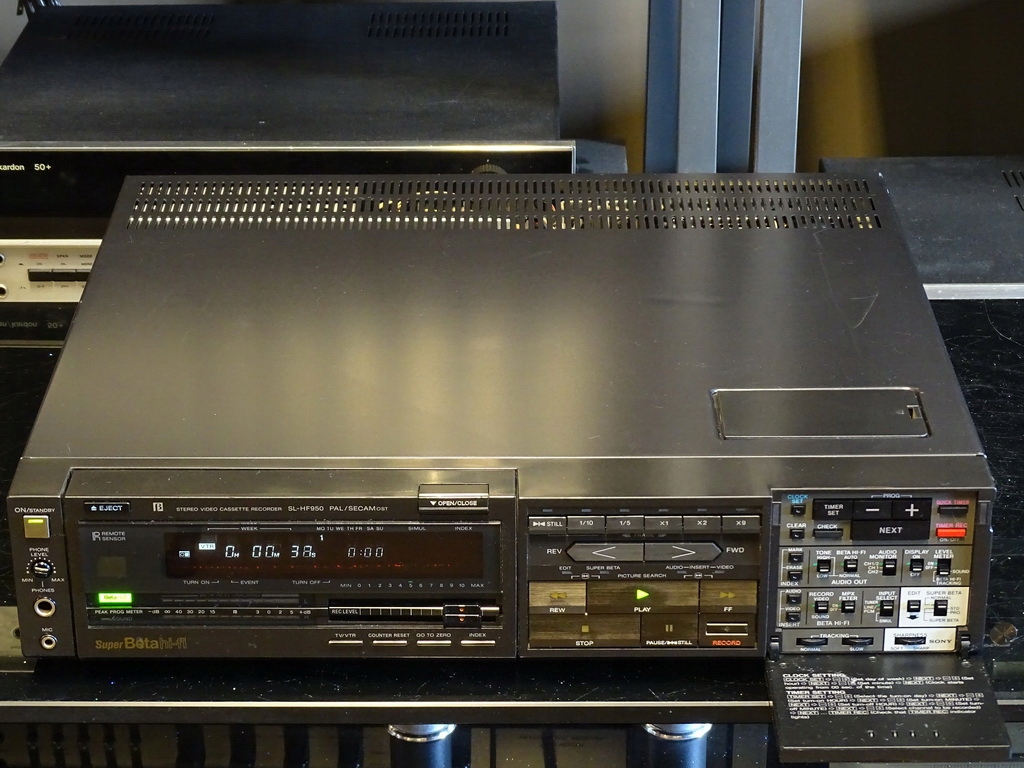

ФОТОГРАФИИ [ REAL PHOTO ]
