USB TO RS485/422

Industrial Grade Isolated Converter

Adopts original FT232RNL and SP485EEN chip solution, provids stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Galvanic Isolated Design

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

• Onboard Original FT232RL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
• Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
• Onboard 120R terminal resistor on the RS485/RS422 ports, enable by default, configurable by jumper
• 3 LEDs for indicating the power and transceiver status
• Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

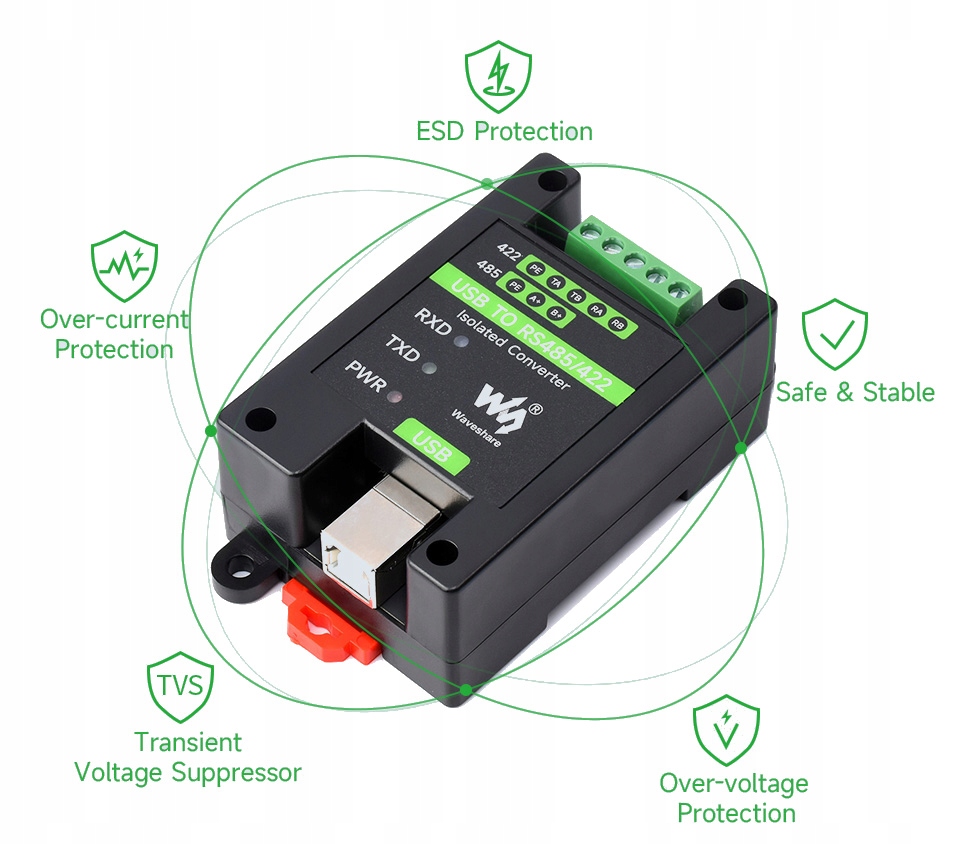

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.

Transmission Distance Up To 1.2km

The USB Signal Can Be Converted Into A Balanced Differential RS485/422 Signal And The Transmission Rate Is Stable. The Transmission Distance Is About 1.2km For RS485/422, And About 5 Meters For USB.

Дополнительная информация: https://www.waveshare.com/wiki/USB_TO_RS485/422

W в комплекте:

1. USB TO RS485/422 x1
2. USB-A male to USB-B male cable ~1.2m x1
3. Screwdriver x1
