Мощность TDA7498, канал 160 Вт 220 Вт X1 модуль

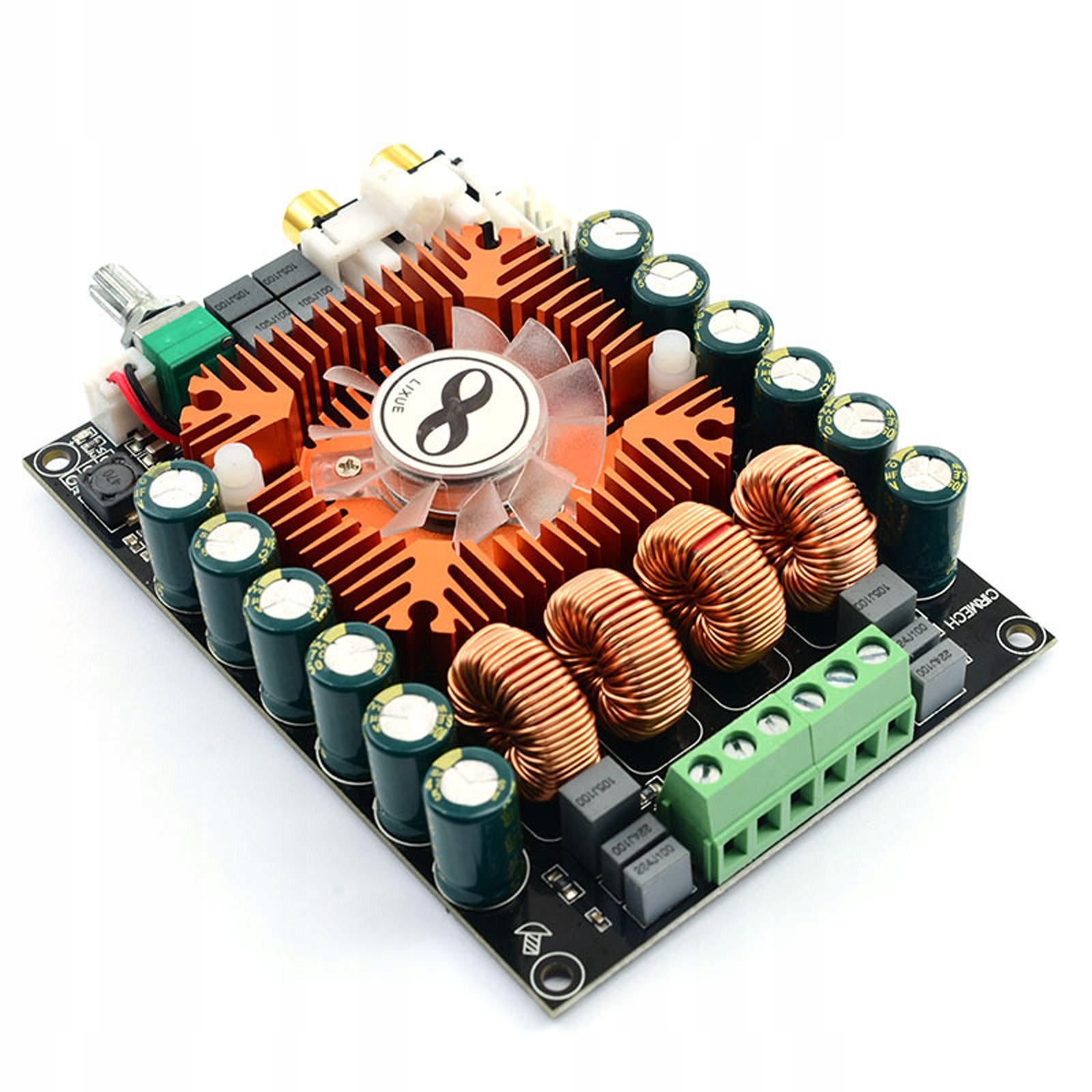

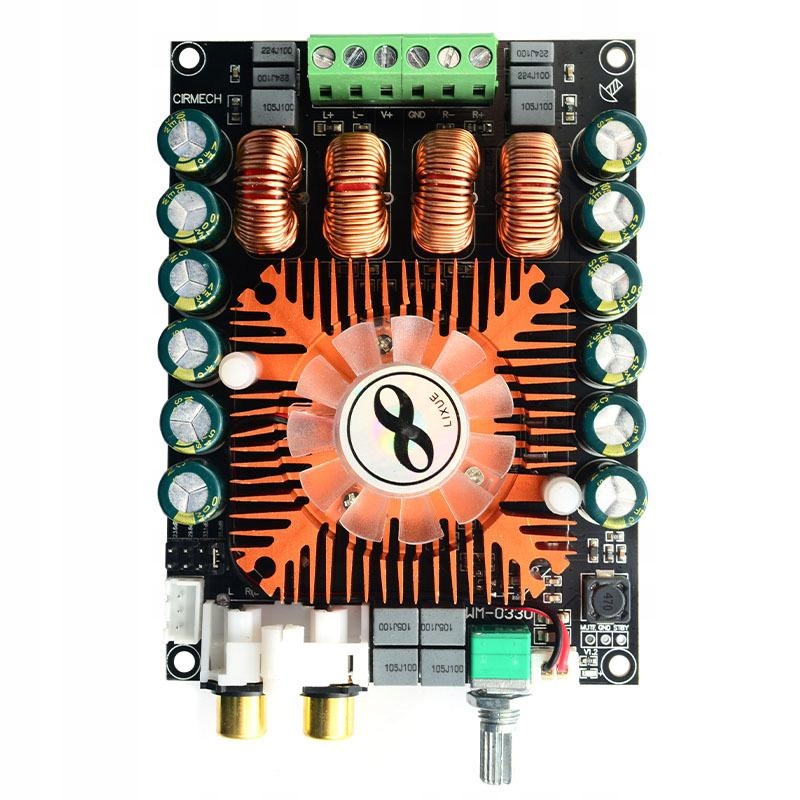

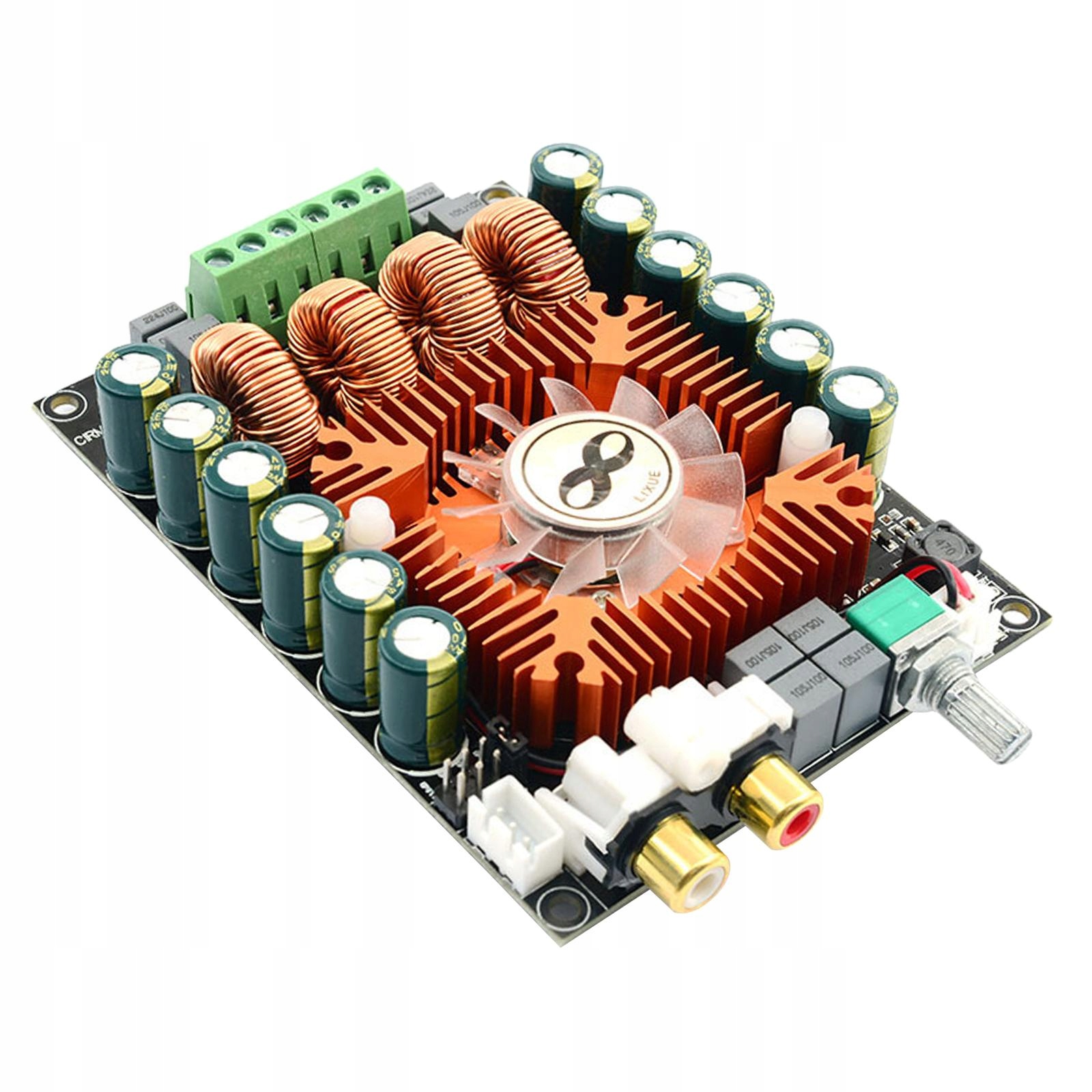

TDA7498E Audio Power Amplifier Board Module 160W x2 for Speaker

Description:

TDA7498E Amplifier Board: TDA7498E chip BTL power amplifier, high power, quality.

Feature: Output power: 160W + 160W (Vcc = 36V, RL = 4Ω, THD: 10%); Output power: 1x220W single channel at parallel BTL (Vcc = 36V, RL = 3Ω, THD: 10%); High efficiency: 85%

Note: of single power supply: 15-36V DC, with input reverse connection protection (if of the speaker is really large enough, the recommended supply is 32V, 8A or above)

Application: Suit for speaker impedance 4Ω, 6Ω, 8Ω; Four fixed gain settings: 29.6dB, 33.1dB, 35.6dB and 35.6dB

With standby and mute function: the short point displayed as standby or mute, can be left empty; controlled forced temperature

Specification:

Name: TDA7498E Amplifier Board

Chip: TDA7498E

Input Voltage: DC 12-32v

Output Power: 160W x 2

Channel: 2 Channel, Stereo

Output Impedance: 4 - 8Ω

Frequency Response: 20Hz-20KHz

Protection function: short circuit, overheating, power supply antireverse connection

Cooling method: temperature cooling intelligent cooling

Features: BTL, gain adjustable

Net weight: about 160g

Output power 160W+160W (vcC-32V RL==10%)

Output power 200w (vcC-32V RL=3THD=10%BTL mono output 200W)

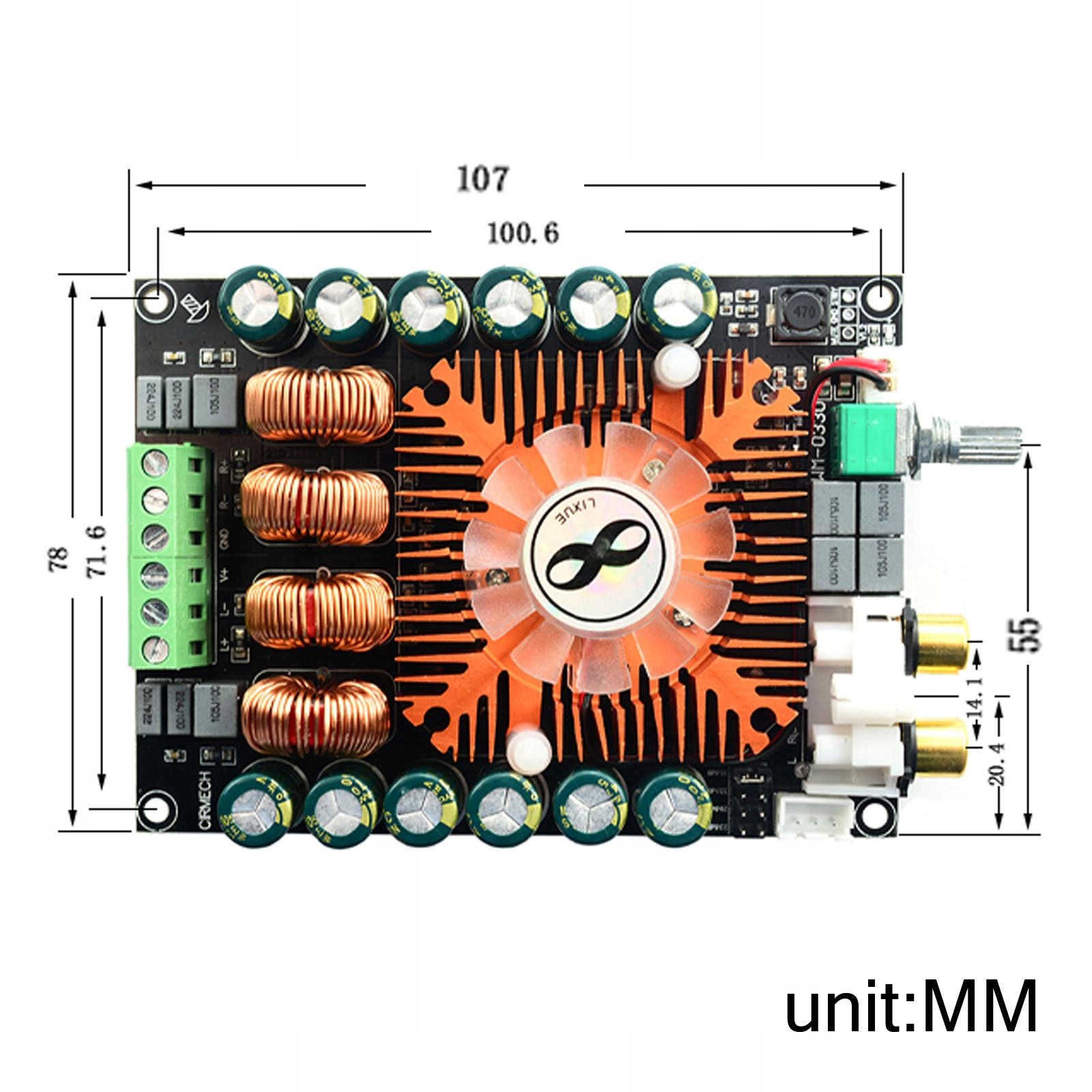

Size Chart:

12cmx7.8cmx2.16cm/4.72inchx3.07inchx0.85inch

Package Includes:

1pc Amplifier Board
