Akai 4000DS MKII . 0525

Magnetofon szpulowy:

Akai 4000DS MKII

Dane techniczne:

• Manufacturer: Akai
• Model: 4000-DS MK II
• Type: Tape Deck
• Years of manufacture: 1976 - 1978
• Made in: Japan
• Color: Silver / Black, Case Wood Walnut
• Type: 3-head coil tape
• Remote control:
• Power Consumption:
• Dimensions: 400 x 300 x 140 mm (WxHxD).
• Weight: 11.5 kg
• Original price approx.: 648 DM
• Connections
• Number of inputs:
• Microphone: 0.5 mV, 30 kOhm
• Line: 50 mV, 330 kOhm
• DIN: 20 mV, 100 kOhm
• Number of outputs:
• Line: 1.23 V
• DIN: 250 mV
• Headphones: 30 - 40 mV at 8 Ohm
• Technical Data
• Max. coil diameter: 18 cm
• Drive: 1 motor
• Heads: 3 (one head each for recording and playback, 1 ferrite erasing head)
• Tracks: 4
• Tape speed: 9.5 / 19 cm/sec
• Overall frequency response:
• 9.5 cm/sec: 30 Hz - 15 kHz ± 3 dB.
• 19 cm/sec: 30 Hz - 22 kHz ± 3 dB
• Synchronous frequency response:
• 9.5 cm/sec: 0.2 %
• 19 cm/sec: 0.15 %
• Signal-to-noise ratio: > 50dB
• External signal-to-noise ratio:
• Distortion factor (1000Hz, "0" VU recording): < 2 %.
• Cancellation attenuation: < 70dB
• Premagnetization and extinction frequency: 60 kHz
• Equalization: according to NARTB
• Crosstalk attenuation at 1 kHz in stereo mode: < 40 dB
• Rewind time: 180 seconds for 350 m band
• Special Features
• Mixable microphone/line inputs
• Multiplayback via S O S switch possible
• Band selector switch for low-noise and wide-range bands
• Switchable equalization related to tape speed
• Adjustment of the tape speed by means of an adapter
• Horizontal or vertical operation

Stan - wizualny: patrz sekcja zdjęć;

- techniczny: Sprzęt uszkodzony, możliwe brakujące lub połamane części, możliwe uszkodzenia elektryczne i mechaniczne wszelkiego typu.

Я ПРИЗЫВАЮ ВАС ПОСМОТРЕТЬ МОИ ДРУГИЕ АУКЦИОНЫ.

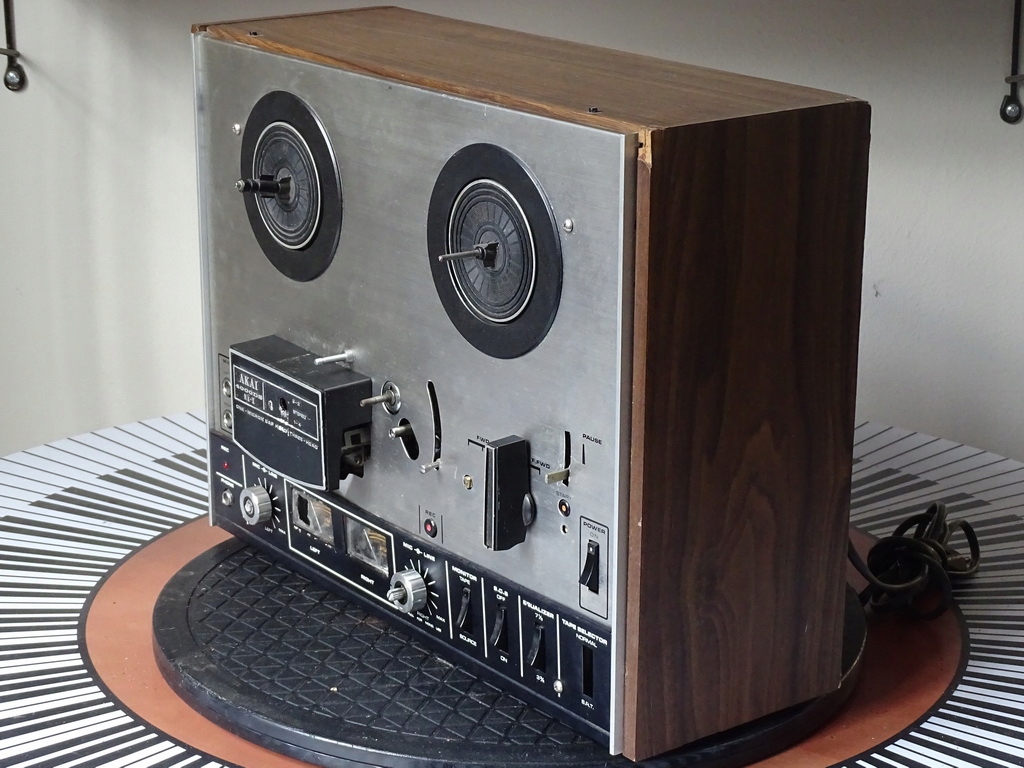

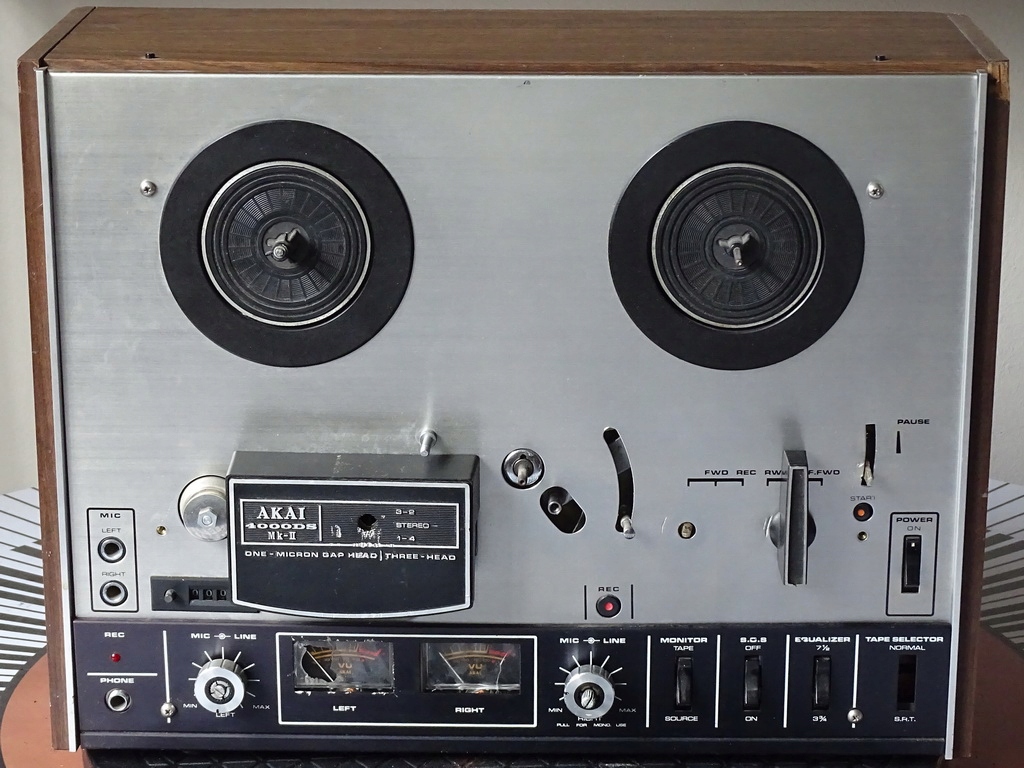

ФОТОГРАФИИ [ REAL PHOTO ]
