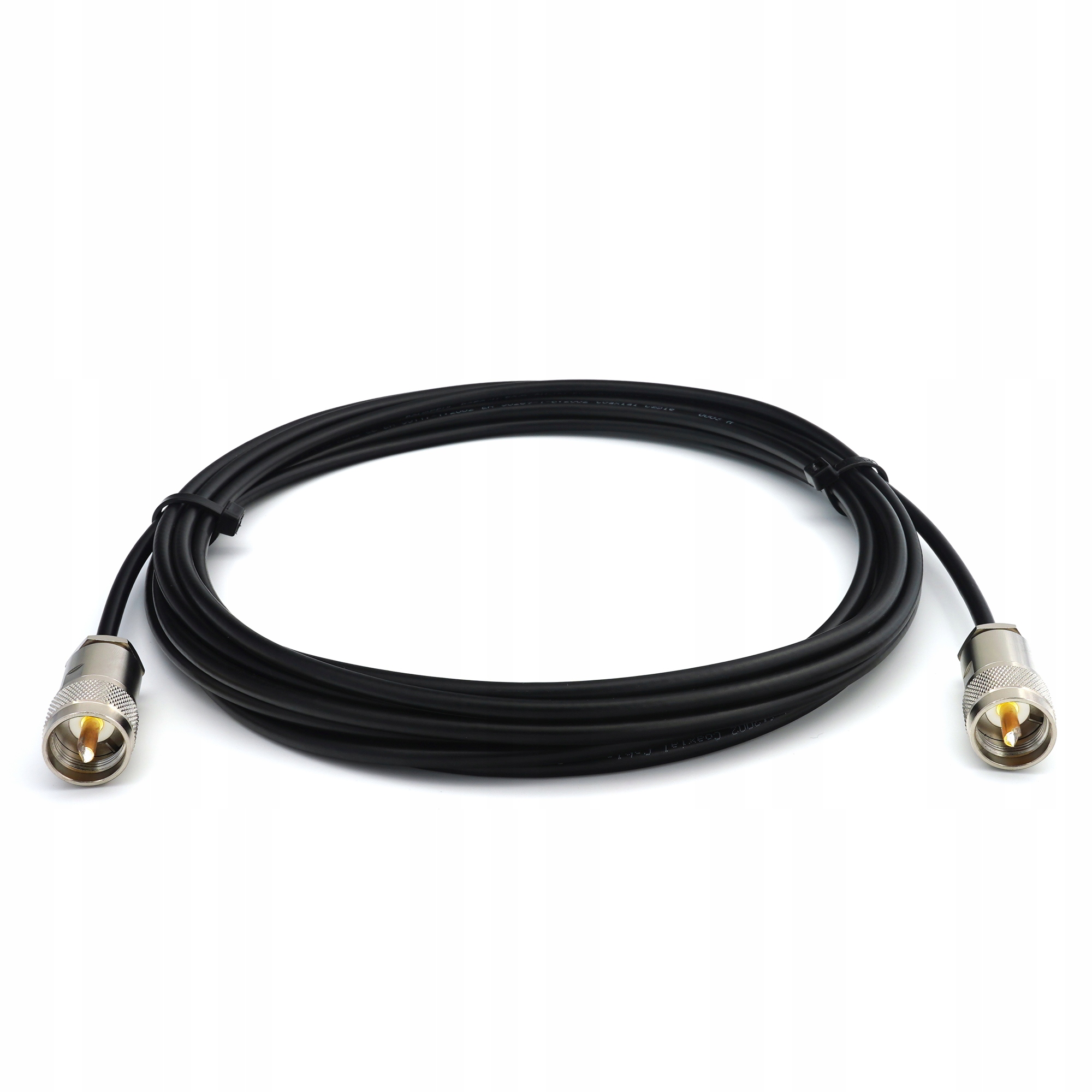

PL259 CB Radio Cable 12m Waterproof VHF UHF Male to Male RG58 50ohm

Low Loss Flexible RG58/U Coaxial Cable Double Shielded with Black PVC Jacket

Application

Widely used with Antennas, Routers, 4G/5G Repeaters, Mobile Amplification Systems, Radio Scanners, Modems, Car Transmitters, CB Radio, Wi-Fi Radios, GPS antennas, various RF devices, Wireless LAN Devices, Testing equipment etc.

Features

✅ Indoor/Outdoor use. Flexible UV-protected black PVC jacket.

✅ Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation.

✅ Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment.

✅ Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94.

Specifications

Cable Type: RG58/U

Center Conductor Type: Solid Copper (1 Strand)

Impedance: 50 Ohm

Frequency Range: DC-6GHz

V.S.W.R: ≤ 2

Operating voltage: 1000Vrms

Input Power (Peak): 2.5 KW

Velocity of propagation: 82%

Shielding Effectiveness: >90dB

Capacitance: 83 pF/m

Dielectric Type: PE

Jacket Material: UV PVC

No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)

Operating Temperature: -40 to +80 deg C

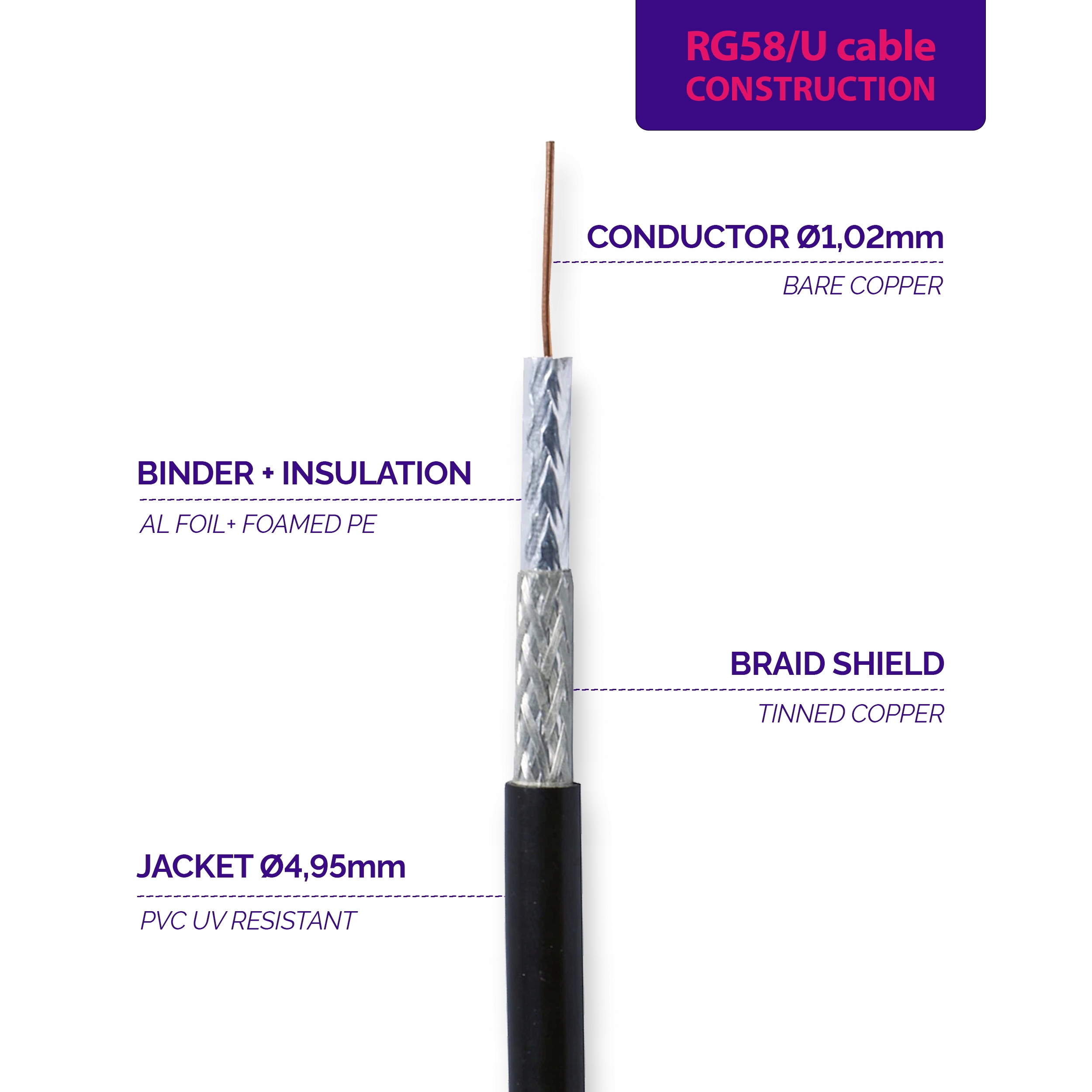

Mechanical Specifications

Diameter: 4.95mm

Inner Conductor: 1.02mm

Dielectric: 2.90mm

Second Shield: 3.40mm

Bending Radius: 50mm

Attenuation dB/100m:

150Mhz: 13

450Mhz: 22

800Mhz: 29

900Mhz: 32

1200Mhz: 39

1800Mhz: 48

2450Mhz: 55

3500Mhz: 66
