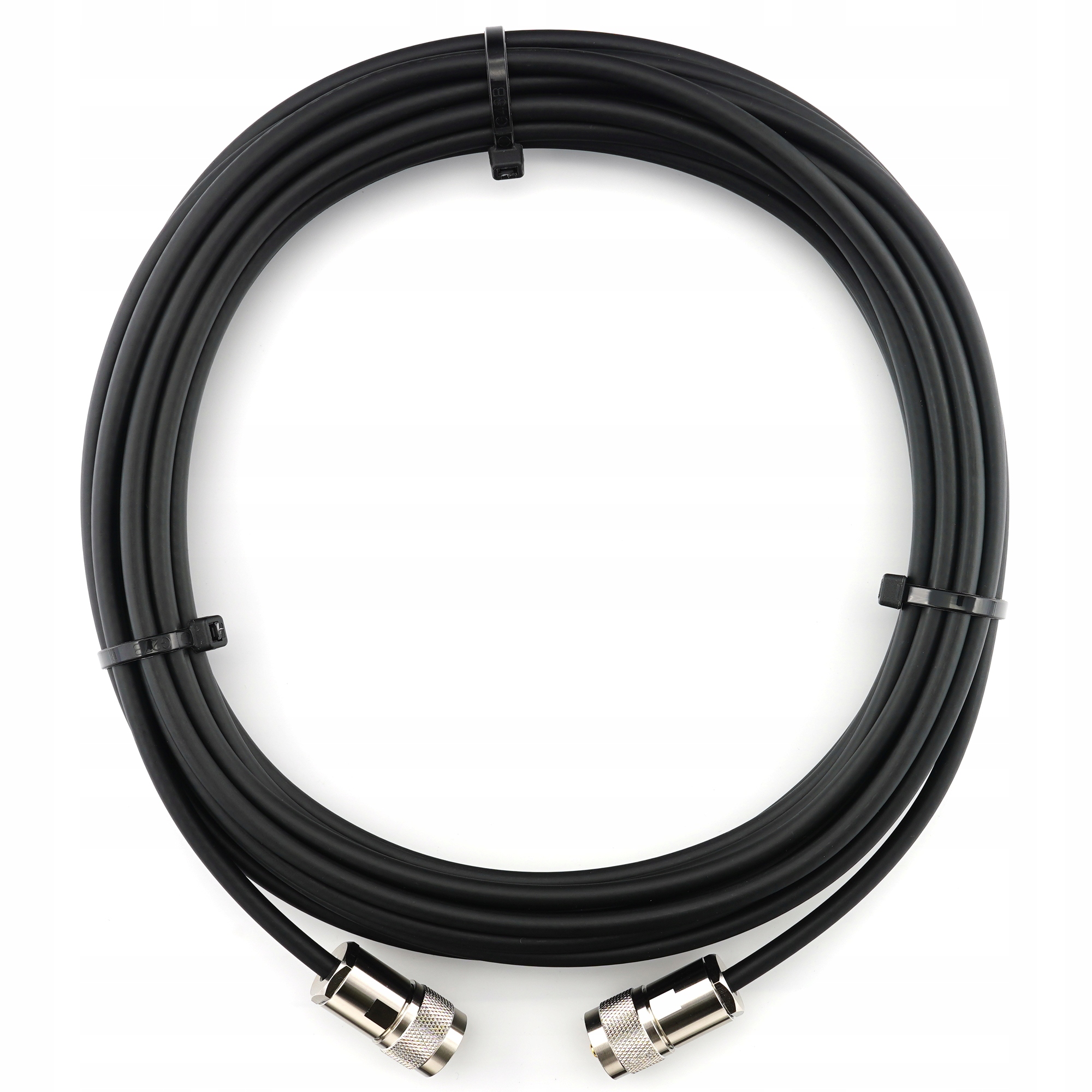

PL259 CB Radio Coaxial Cable 15m HF-240 (LMR 240 equivalent)

Low Loss Indoor/Outdoor HF240 Semi-flexible Coaxial CableDouble Shielded with Black PVC Jacket

Application

Widely used with Antennas, Routers, 4G/5G Repeaters, Mobile Amplification Systems, Radio Scanners, Modems, Car Transmitters, CB Radio, WiFi Radios, GPS antennas, various RF devices, Wireless LAN Devices, Testing equipment etc.

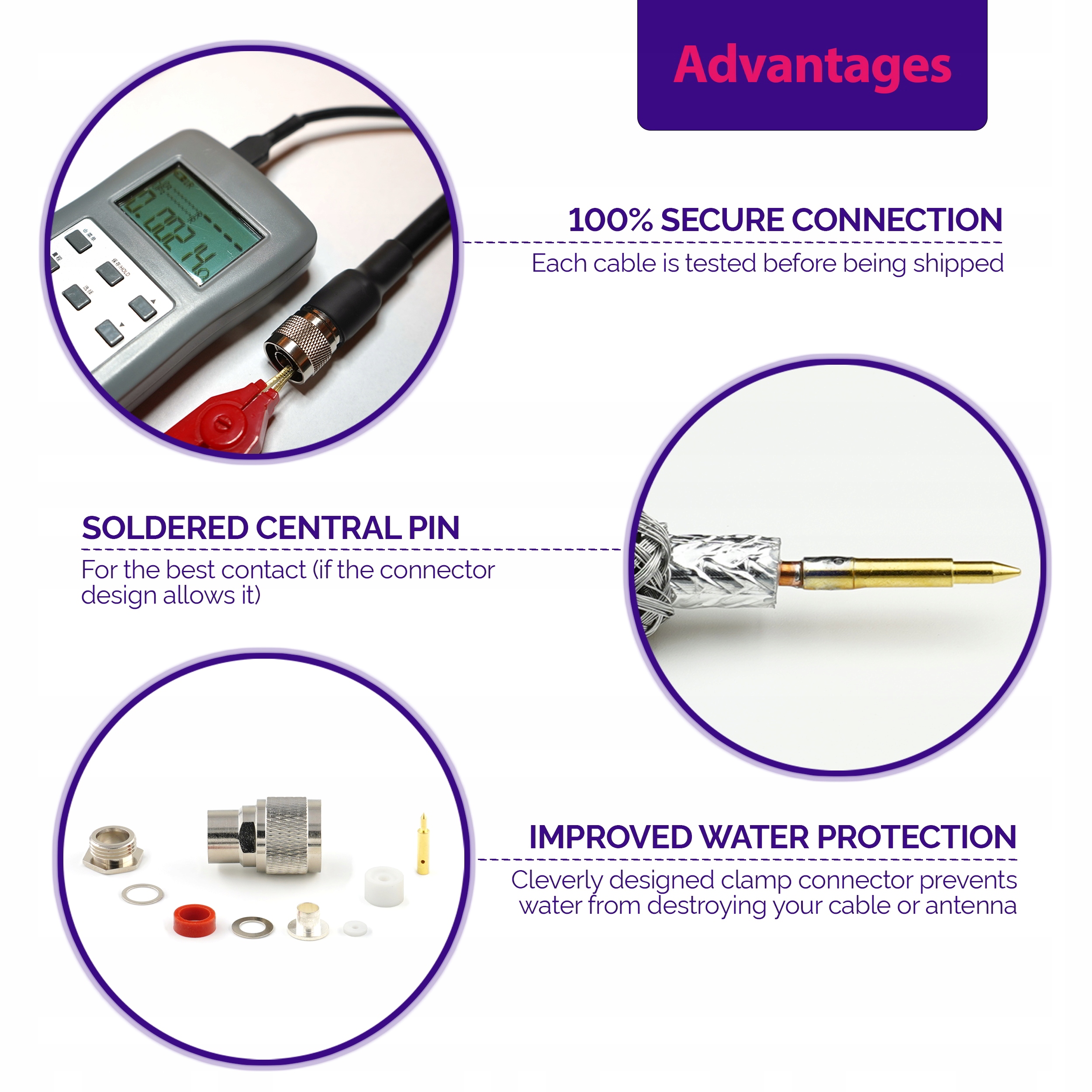

Features

✅ Indoor/Outdoor use. UV-protected and Waterproof black PVC Jacket.

✅ Solid Copper Conductor and Tinned Copper Braided Shield best-in-class data transmission with minimal attenuation.

✅ Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment.

✅ Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94.

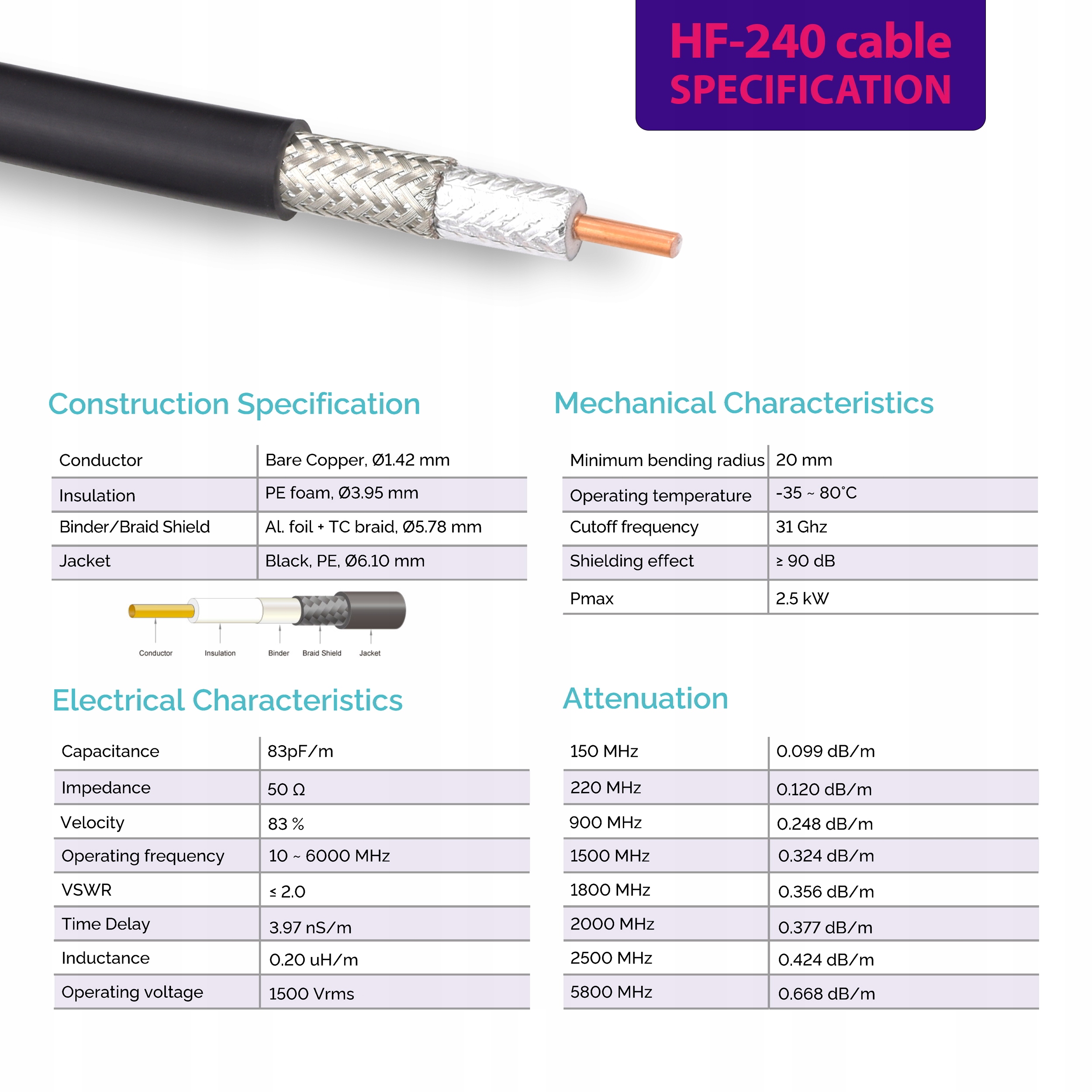

Specifications

Cable Type: HF240 Bare Copper with PVC Jacket

Center Conductor Type: Solid Copper (1 Strand)

Impedance: 50 Ohm

Frequency Range: DC - 6GHz

Cutoff Frequency: 31 Ghz

V.S.W.R: ≤ 2

Operating voltage: 1500Vrms

Input Power (Peak): 2.5 KW

Shielding Effectiveness: >90dB

Capacitance: 83 pF/m

Dielectric Type: PE

Jacket Material: PVC

No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)

Operating Temperature: -35 to +80 deg C

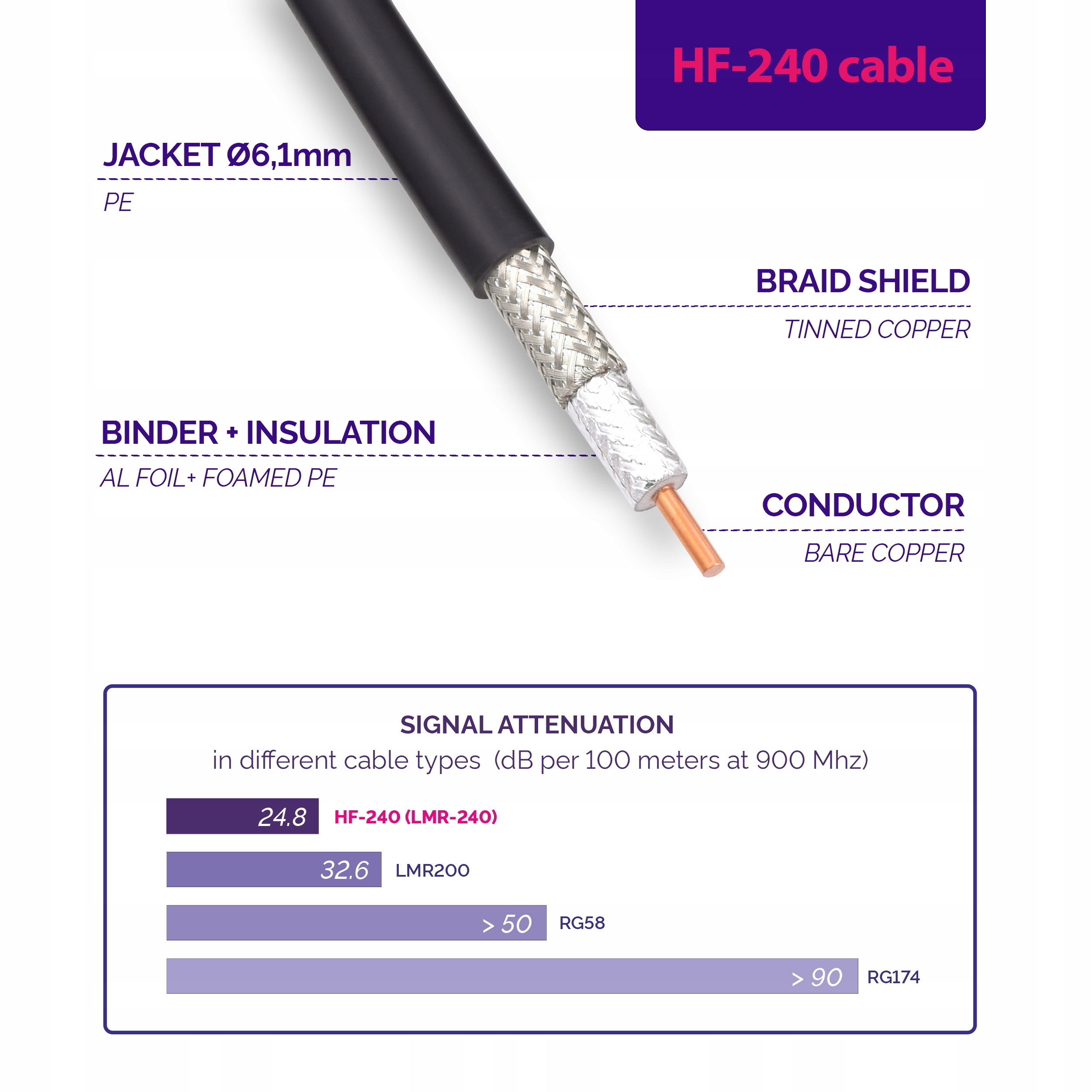

Mechanical Specifications

Diameter: 6.10mm

Inner Conductor: 1.42mm

Dielectric: 2.90mm

Second Shield: 3.95mm

Bending Radius: 20mm

Attenuation dB/100m:

900Mhz: 24.8

1800Mhz: 35.6

2500Mhz: 42.4

5800Mhz: 66.8
