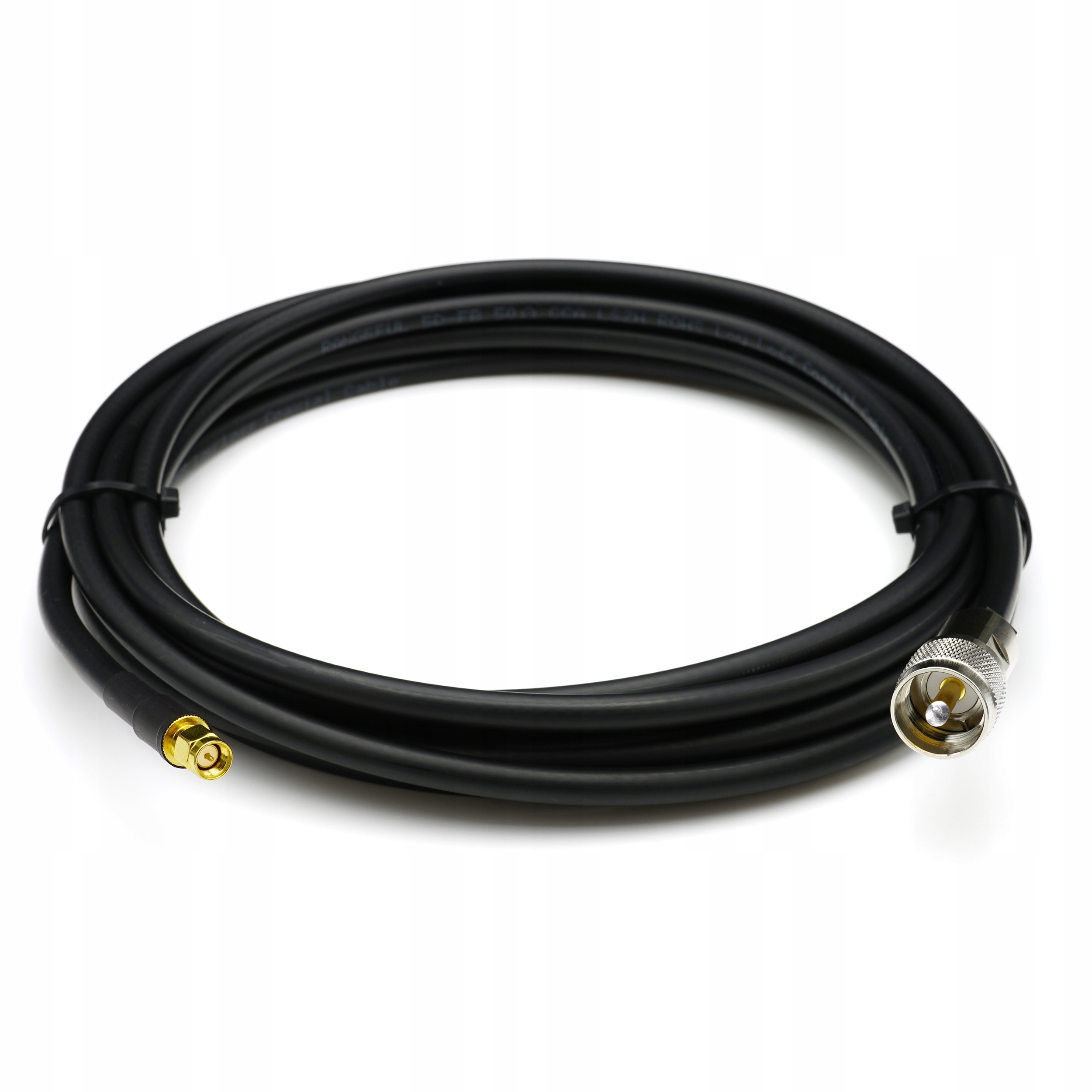

PL259 SMA CB Radio Coaxial Cable 12m Waterproof VHF UHF 5D-FB RF HAM Radio

Low Loss Semi-Flexible 5D-FB Coaxial Cable Double Shielded with Black LSZH Jacket

Application

Widely used with Antennas, Routers, Radio Scanners, Modems, Car Transmitters, CB Radio, Wi-Fi Radios, GPS antennas, various RF devices, Wireless LAN Devices, Testing equipment etc.

Features

✅ Indoor/Outdoor use. Semi-Flexible UV-protected black LSZH jacket.

✅ Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation.

✅ Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94.

Specifications

Cable Type: 5D-FB

Center Conductor Type: Copper (1 Strand)

Impedance: 50 Ohm

Frequency Range: DC-6GHz

V.S.W.R: ≤ 1,40

Shielding Effectiveness: >90dB

Capacitance: 80 pF/m

Dielectric Type: PE

Jacket Material: LSZH

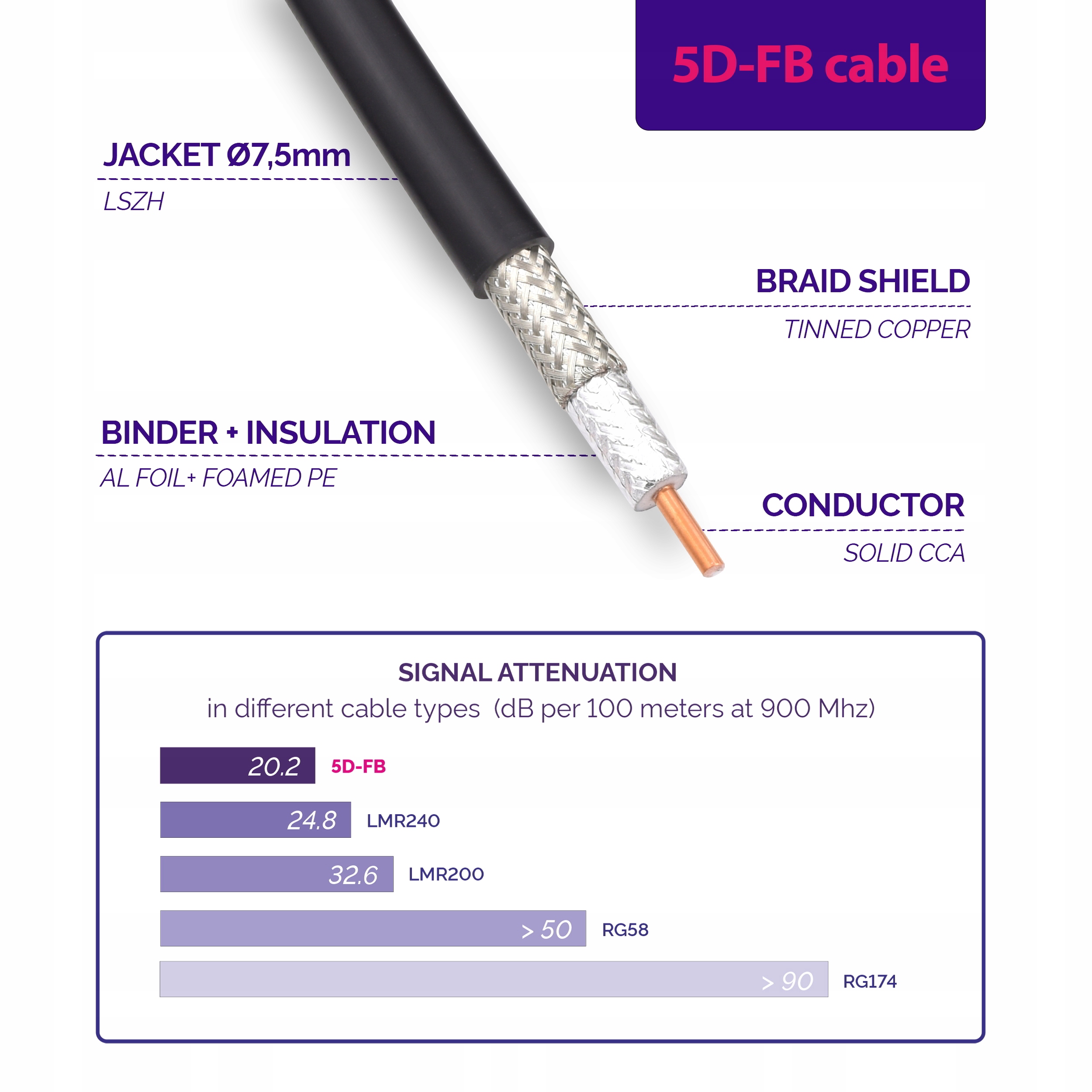

No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)

Operating Temperature: -40 to +80 deg C

Mechanical Specifications

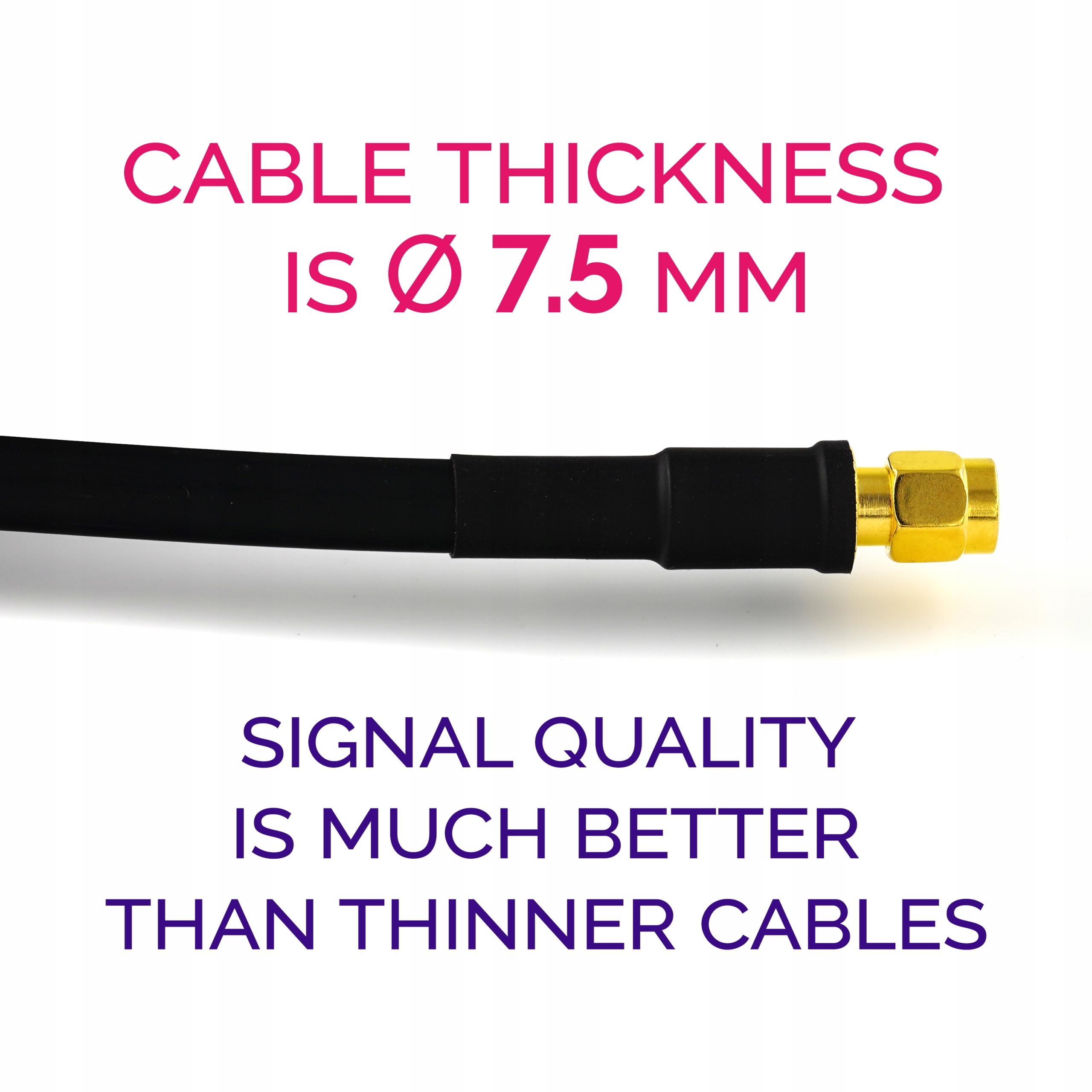

Diameter: 7.60 mm

Inner Conductor: 1.78 mm

Dielectric: 4.85 mm

Second Shield: 5.45 mm

Bending Radius: 75 mm

Attenuation dB/m:

150Mhz: 0,073

450Mhz: 0,132

900Mhz: 0,190

1500Mhz: 0,253

1800Mhz: 0,286

2000Mhz: 0,301

2500Mhz: 0,335

3000Mhz: 0,374

5800Mhz: 0,553

Certification

Full compliance with European Standards.

CE: EN50117-1:2002, EN 50289-1-6:2002; RoHS; REACH; ECE R118, Revision 1 - Amendment 2, 2016; ISO6772
