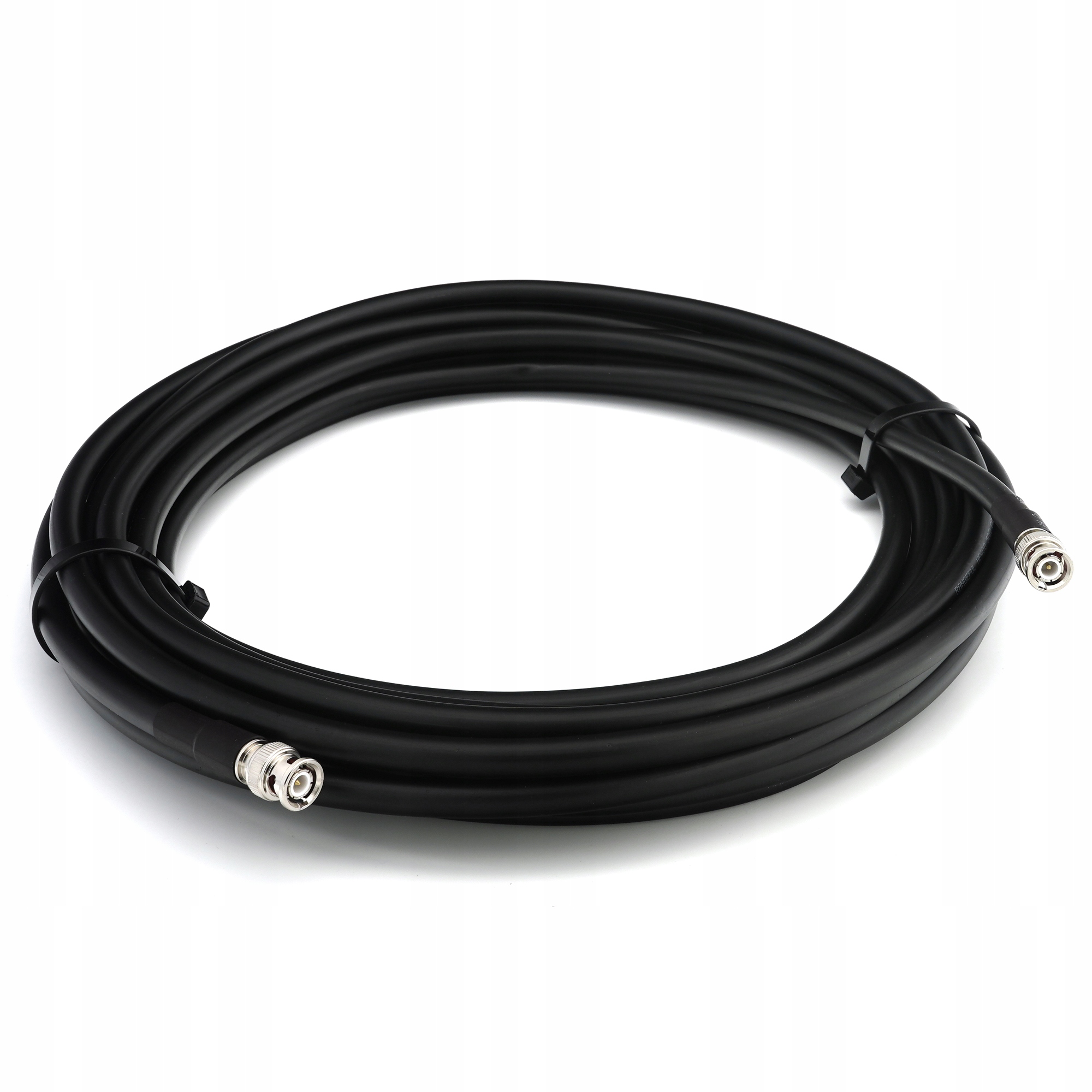

3m BNC Male to BNC Male UHF RG213 CB Coaxial Cable for HAM Radio Antenna

UHF Low Loss Flexible RG213 Coaxial Cable Bare Copper with Black Non-contaminating PVC Jacket

Application

RG213 is one of the most popular coaxial cables. Widely used with Antennas, Routers, Radio Scanners, Modems, CB Radio, GPS antennas, various RF devices, HAM radio equipment, FM radio, Amateur radio, FRS GMRS MURS radio, Public radio scanner, SWR meters, Testing equipment, etc.

Features

✅ Flexible UV-protected black PVC jacket.

✅ Stranded Bare Copper Conductor and Bare Copper Braided Shield with 97% coverage for best-in-class data transmission with minimal attenuation.

✅ Certified for EU and UK. Full compliance with European standards. CE, RoHS, REACH, Class CPR Eca, UKCA.

Mechanical specifications

Center Conductor Type: Stranded copper 7 x 0,75 mm

Dielectric: Low Density Polyethylene ø 7,25 ± 0,18 mm

Braiding Shield: Plain Copper 192 x 0,18 mm

Braiding Coverage: 97%

Sheath: Non-contaminating PVC ø 10,3 ± 0,18 mm

Color: Black - RAL 9004

Temperature Range: -30 °C / +70 °C

Cable Weight (Kg/Km)

Copper: 77,4

Plastic: 86,1

Electrical specifications at 20°C

Impedance: 50 ± 2 Ohm

Capacitance: 100 pF/m

Velocity Ratio: 66%

Inner Conductor/Braid Resistance: 6/4,4 Ohm/Km

Sheath Spark Testing: 5,5 kV

Attenuation dB/100m:

5 MHz: 1,2

10 MHz: 1,8

50 MHz: 3,3

100 MHz: 4,3

200 MHz: 8,2

400 MHz: 10,0

800 MHz: 20,4

1750 MHz: 34,2

2500 MHz: 48,9

3000 MHz: 84,0
