Akai GX-620. 1025

Magnetofon szpulowy:

Akai GX-620

Dane techniczne:

• Manufacturer: Akai
• Model: GX-620
• Years of manufacture: 1980 - 1982
• Made in: Japan
• Color: silver, case wood
• Remote control: yes (wired remote control)
• Power consumption: 120 W
• Dimensions: 443 x 475 x 228 mm (WxHxD)
• Weight: 17.6 kg
• Original price approx.: 1'400 DM (1980)
• Connections
• Number of outputs: 3
• Line (0,775 V)
• DIN (0.3 V)
• Headphones (100 mV / 8 Ohm)
• Number of inputs: 3
• Microphone (0.25 mV / 600 kOhm)
• Line (70 mV / 100 kOhm)
• Radio (2 mV / 10 kOhm)
• Technical Data
• Max. coil diameter: 26,5 cm
• Drive: 3 motors
• Heads: 3 clay heads
• Tracks: 4
• Tape speeds: 9.5 and 19 cm/s
• Slip:
• Speed variations:
• at 9.5 cm/s: < 0.1%
• at 19 cm/s: < 0.08%
• Pitch fluctuations:
• Overall frequency response:
• at 9.5 cm/s: 30 - 19,000 Hz
• at 19 cm/s : 30 - 26,000 Hz
• Signal-to-noise ratio:
• at 9.5 cm/s: > 60 dB
• at 19 cm/s: > 62 dB
• External signal-to-noise ratio:
• Distortion factor:
• Equalization:
• crosstalk attenuation:
• opposite stereo operation: < 40 dB (1 kHz)
• Löschdämpfung: >70 dB
• Premagnetization and extinction frequency: 100 kHz
• Special Features
• remote control optional

Состояние:

- визуальный: см. раздел "фотографии".

- техническое:

Я ПРИЗЫВАЮ ВАС ПОСМОТРЕТЬ МОИ ДРУГИЕ АУКЦИОНЫ.

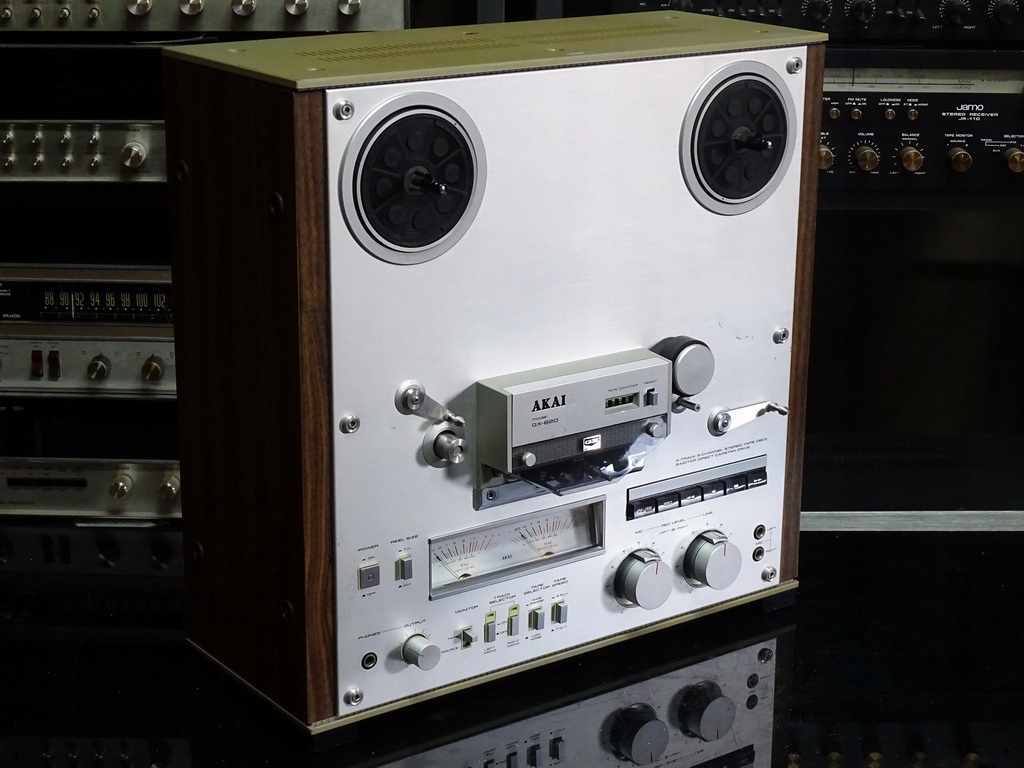

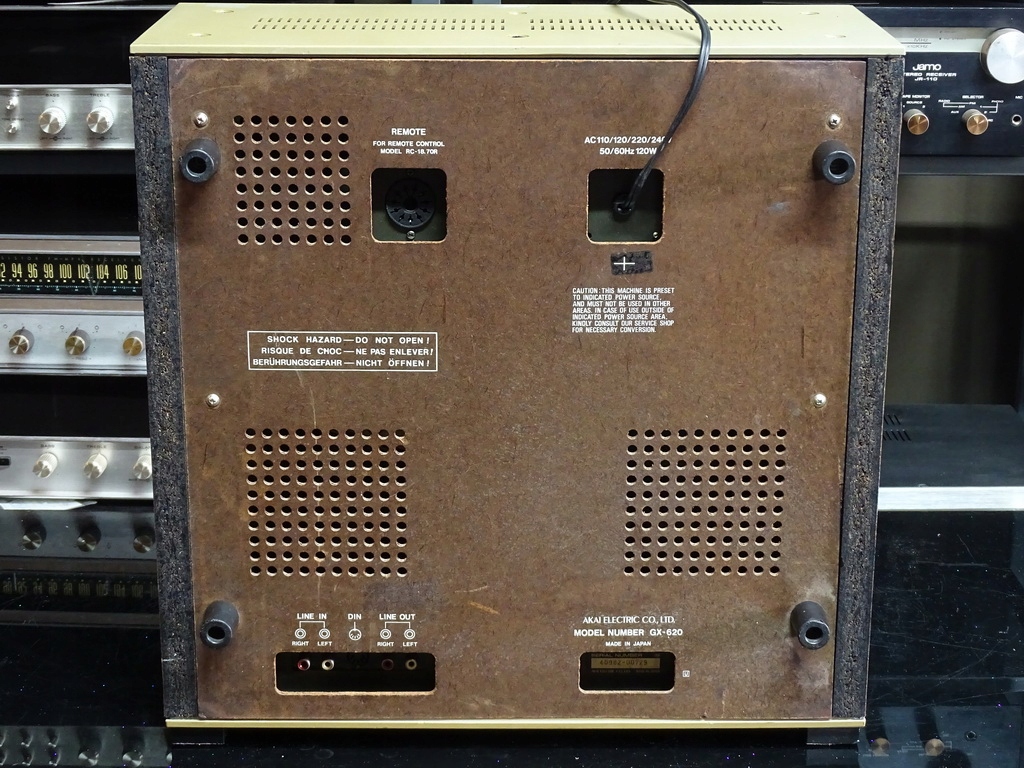

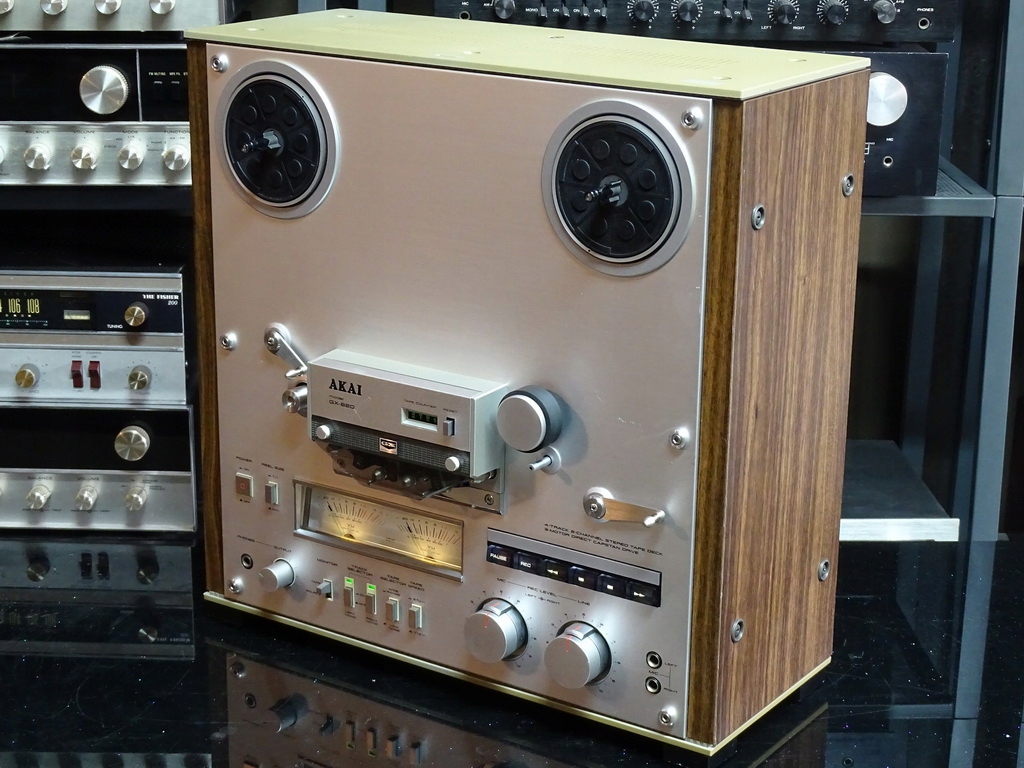

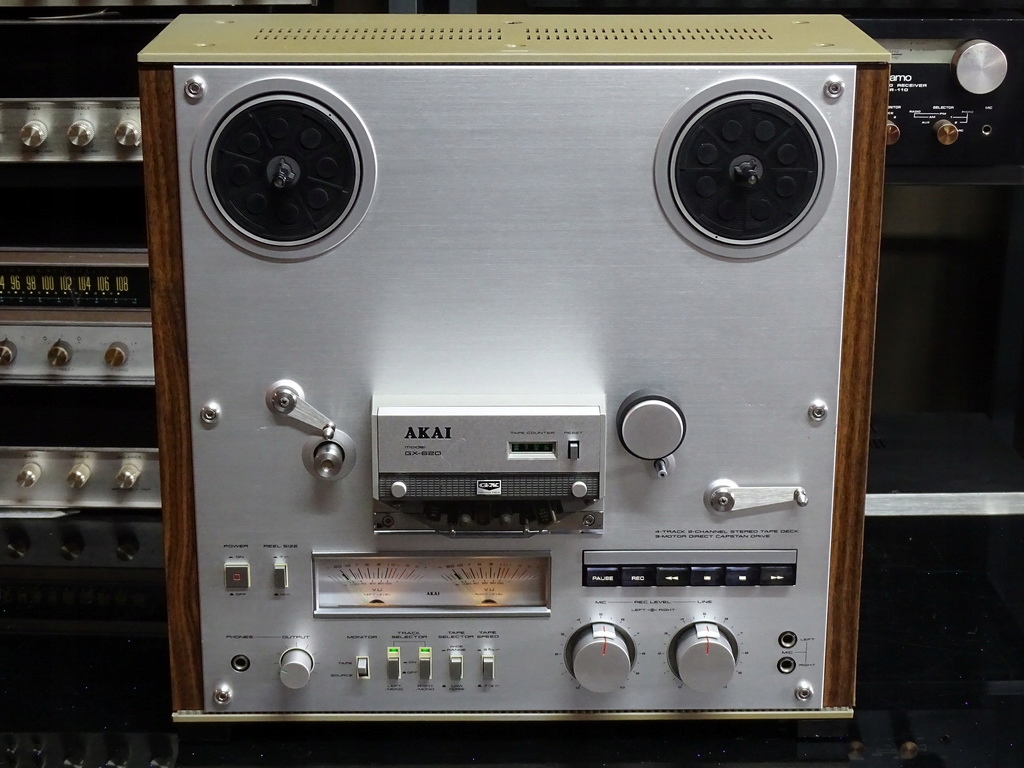

ФОТОГРАФИИ [ REAL PHOTO ]
