ASC AS 6004S. 1125

Magnetofon szpulowy:

ASC AS 6004S

Dane techniczne:

• Manufacturer: ASC
• Model: AS 6004
• Type: Coil tape
• Years of manufacture: 1977 - 1990
• Model: AS 6004: 1977 - 1981
• Model: AS 6004 S: 1981 - 1990
• Made in: Germany
• Colour: Black
• Remote control: Connection for cable remote control
• Power consumption: 90 Watt
• Dimensions (WxHxD): 430 x 160 x 350 mm
• Weight: 18 kg
• Connections
• Number of outputs:
• Headphones (DIN cube-5)
• Radio (DIN): 1 V / 470 Ohm
• Number of inputs:
• Radio (DIN): 1 mV / kOhm / 4.7 kOhm.
• Phono (DIN): 100 mV / 1 MOhm
• 2x microphone
• Slide control
• Projector
• Technical data
• Max. coil diameter: 26,5 cm
• Drive: 3 motors
• Heads: 3
• Tracks: 4
• Tape speeds: 4.75 cm/s, 9.5 cm/s, 19 cm/s
• Model AS 6004/38: 9.5 cm/s, 19 cm/s, 38 cm/s
• Synchronous fluctuations:
• Pitch fluctuations:
• 4.75 cm/s: < 0.2%
• 9.5 cm/s: < 0.1%
• 19 cm/s: < 0.05%
• 38 cm/s: < 0.04%
• Overall frequency response:
• 4.75 cm/s: 20 - 14,000 Hz
• 9.5 cm/s: 20 - 18,000 Hz
• 19 cm/s: 20 - 25,000 Hz
• 38 cm/s: 20 - 25,000 Hz
• Quiescent Noise Voltage Interval:
• 4.75 cm/s: 54 dB
• 9.5 cm/s: 63 dB
• 19 cm/s: 64 dB
• 38 cm/s: 65 dB
• Extraneous voltage spacing:
• 4.75 cm/s: 48 dB
• 9.5 cm/s: 54 dB
• 19 cm/s: 54 dB
• 38 cm/s: 54 dB
• Distortion factor:
• 9.5 cm/s: 0.8 %
• 19 cm/s: 0.6 %
• 38 cm/s: 0.6
• Equalization:
• 4.75 cm/s: 120µs + 3180µs
• 9.5 cm/s: 90µs + 3180µs
• 19 cm/s: 50µs + 3180µs
• 38 cm/s: 50µs + 3180µs
• Crosstalk attenuation: 50 dB (stereo, 1 kHz)
• Mono at 1,000 Hz: - 70 dB; between 500 Hz and 6,300 Hz: - 55 dB
• Stereo at 1,000 Hz: - 48 dB; between 500 Hz and 6,300 Hz: - 43 dB
• Cancellation attenuation: > 70 dB at all speeds

Stan:

- wizualny: patrz sekcja zdjęć.

- techniczny: Magnetofon zniekształca dźwięk (trzaski, zakłócenia itp.) Poza tym magnetofon działa.

Я ПРИЗЫВАЮ ВАС ПОСМОТРЕТЬ МОИ ДРУГИЕ АУКЦИОНЫ.

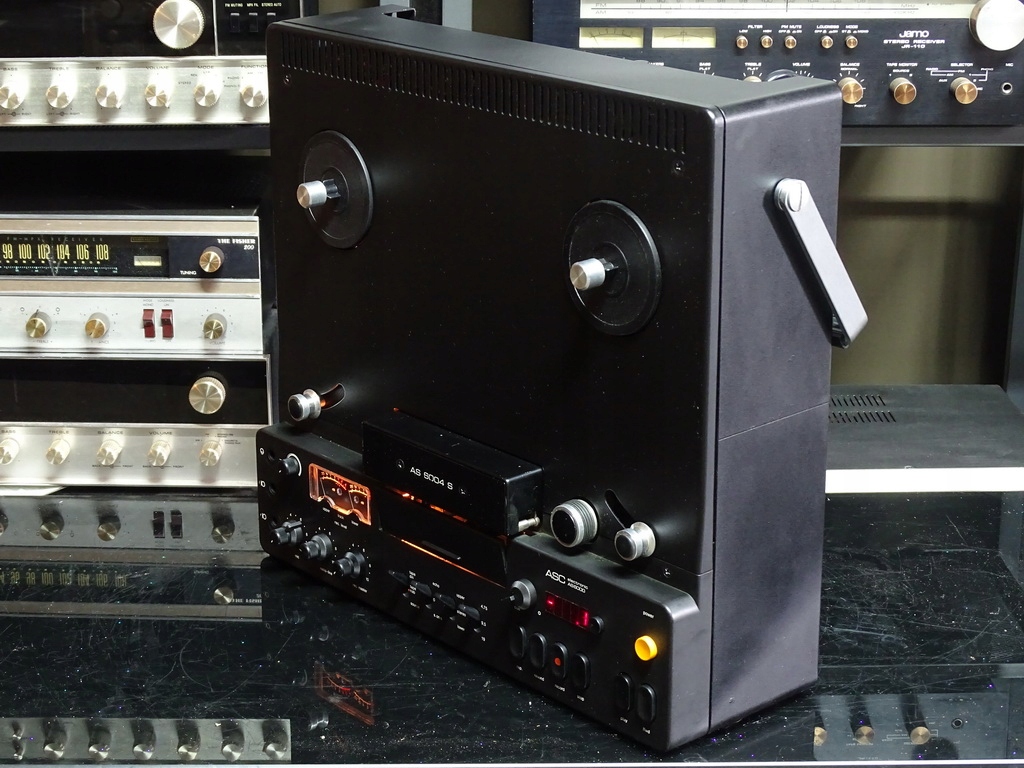

ФОТОГРАФИИ [ REAL PHOTO ]
