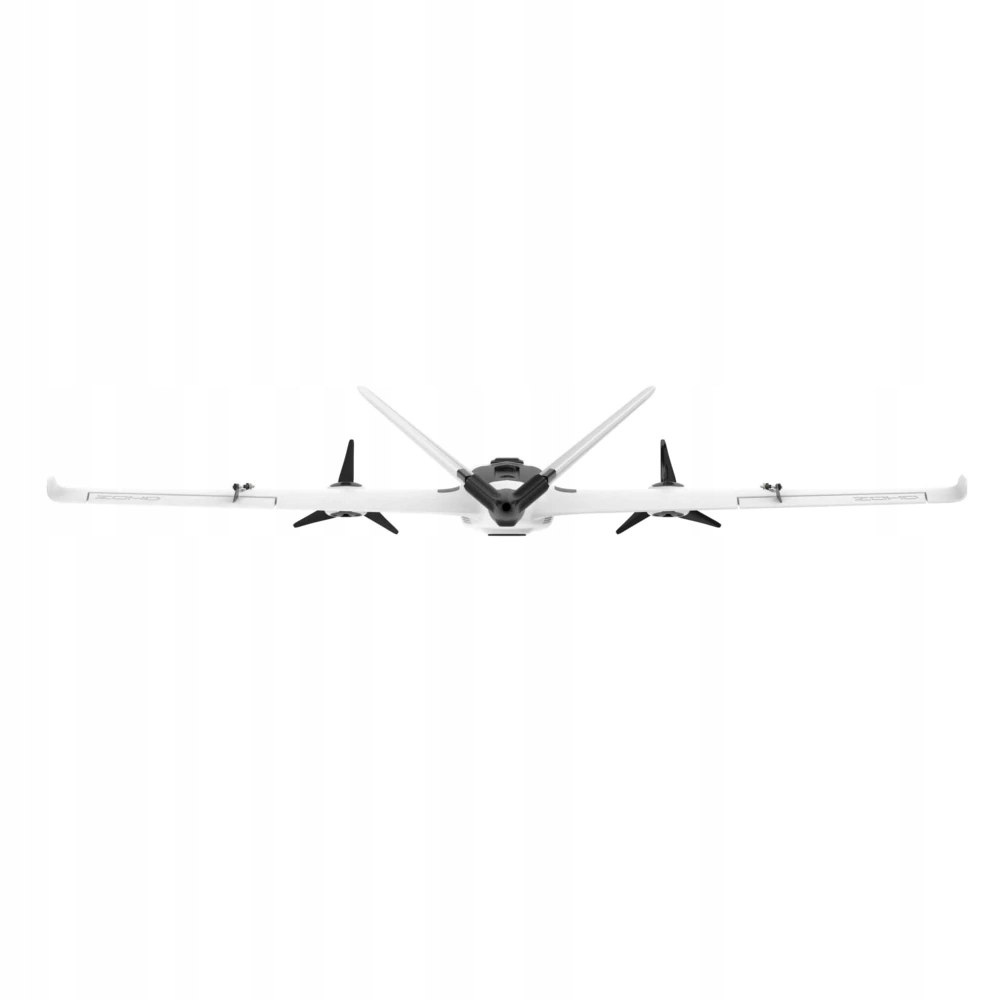

ZOHD Altus 980mm Wingspan Twin Motor V-Tail EPP FPV RC Airplane KIT/PNP

ZOHD Altus 980mm Wingspan Twin Motor V-Tail EPP FPV RC Airplane KIT/PNP

Banggood Shopify CSV

Specifications:

Brand Name: ZOHD

Item Name: Altus

Material: High-Quality EPP

Wingspan: 980mm (38.58')

Length: 770mm (30.31')

Version: KIT, PNP (optional)

KIT Empty Weight: 365g

PNP Empty Weight: 545g

Recommended ZOHD Power Combo Configuration

- Twin Motor: 2204-1870KV

- Twin ESC: 30A w/5V 2A BEC

- Servos: 4pcs 9g metal gear servo

- Propeller: 3 blades R42

- Recommended Battery: Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh, Click Here

- Radio System: 2.4GHz 6CH

Recommended Flying Capability:

- Min. recommended speed: 30km/h

- Max. Speed (with ZOHD power combo): 120km/h

- Cruise speed (with ZOHD power combo): 70km/h @ 5A approx.

- Max recommended takeoff weight (with ZOHD power combo): 1200 grams approx.

- Recommended max. Throws: 12mm

Features:

- Versatile Power Combo: The Altus is equipped with a powerful Twin Motor (2204-1870KV and Twin ESC (30A w/5V 2A BEC), ensuring dynamic flights and impressive speeds up to 120km/h.

- Easy Assembly, Portable Design: Experience glue-free assembly and the convenience of a detachable main wing and tail wing, making the Altus a portable companion for outdoor adventures.

- HD Camera Compatibility: Capture breathtaking moments with the nose camera bay compatible with popular HD Action cameras, compatible with GoPro, DJI, and RunCam, supported by specially designed foam for a secure fit.

- Aerodynamic Excellence: Thanks to the aerodynamically designed FPV gear pockets in both wings, reducing, interference and maintaining stability during flights. The Altus features a highly efficient NACA air cooling system to keep your FPV gear performing at its best.

- Construction: Molded with tough EPP material and reinforced with a built-in CF spar, the Altus promises super stable flying capabilities and remarkable crash resistance, ensuring durability for countless flights.

- Precision Control: Enjoy precise control with the built-in CF rod in the control surface and a high-accuracy ball link control system, providing agile and quick responses to your commands.

- Extended Flight Time: The large battery bay accommodates Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh，offering extended flight times for uninterrupted aerial exploration.

- Upgrade Ready: The Altus comes with a reserved VTOL capability for future upgrades, ensuring your FPV adventures are always at the forefront of technology.

English Manual, Click Here

KIT Version Included:

1x ZOHD Altus EPP RC Airplane KIT

KIT package size: 450*250*160cm

KIT package weight: 710g

Note: Motor, ESC, Servo, Propeller, Transmitter, Receiver, Battery, Charger, FPV Equipments and Glue are not included.

PNP Version Included:

1x ZOHD Altus EPP RC Airplane KIT

2x 2204-1870KV Motor

2x 30A w/5V 2A BEC ESC

4x servo

2x 3 Blades Propeller

PNP package size: 450*250*160cm

PNP package weight: 830g

Note: Transmitter, Receiver, Battery, Charger, FPV Equipments and Glue are not included.
