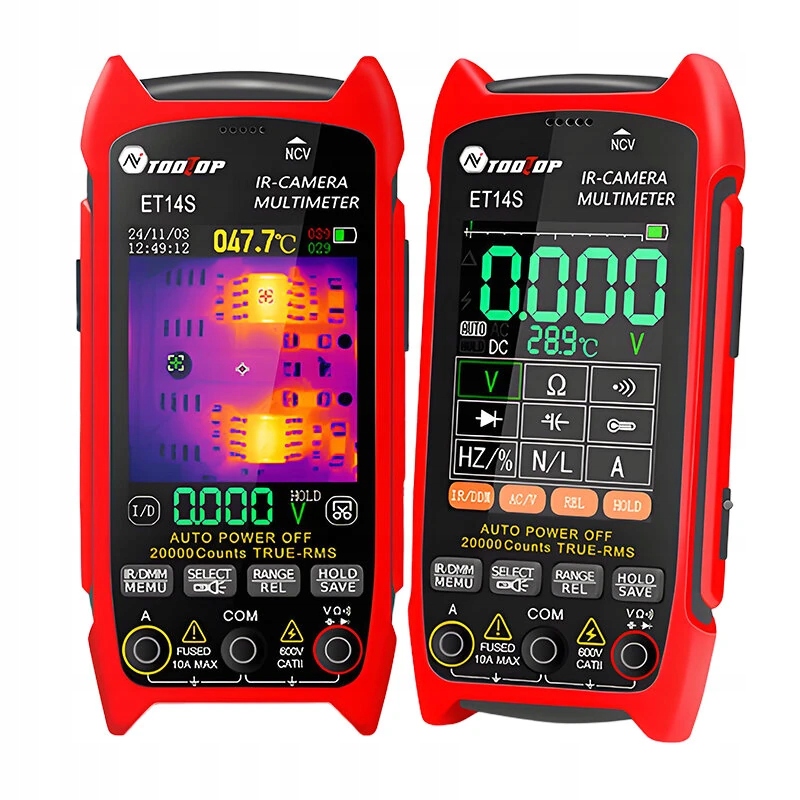

TOOLTOP ET14S/ET14SPRO Thermal Imaging Multimeter & PCB Circuit Board Teste

TOOLTOP ET14S/ET14SPRO Thermal Imaging Multimeter & PCB Circuit Board Teste

Specifications:

Models: ET14S, ET14SPRO

Thermal Imaging Pixel: ISR 240*240

Measurement Temperature Range: -20°C to +550°C

Image Capture Frequency: 25HZ

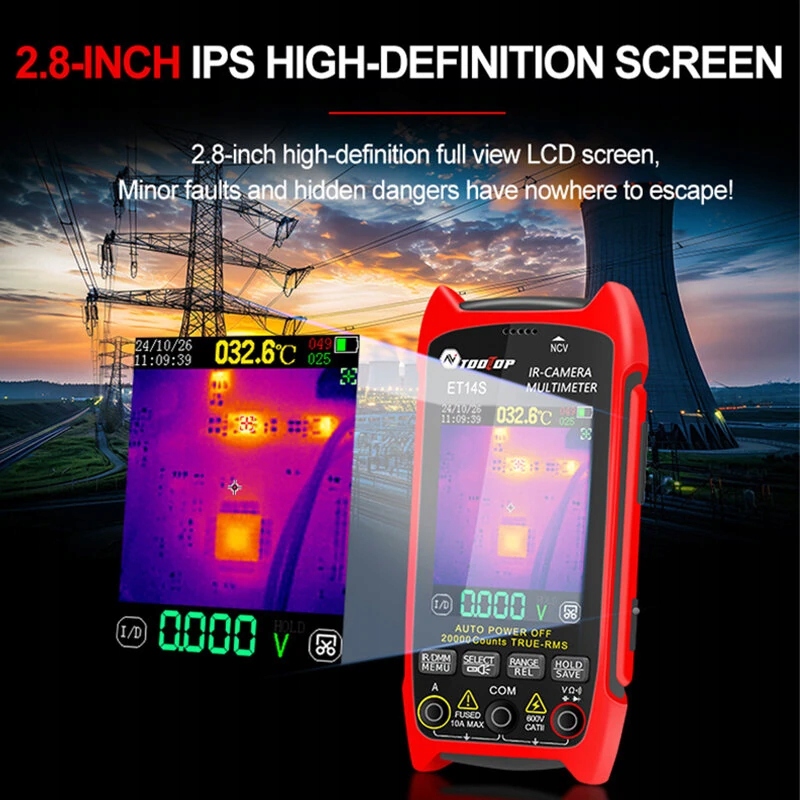

Display Image Resolution: 240*240

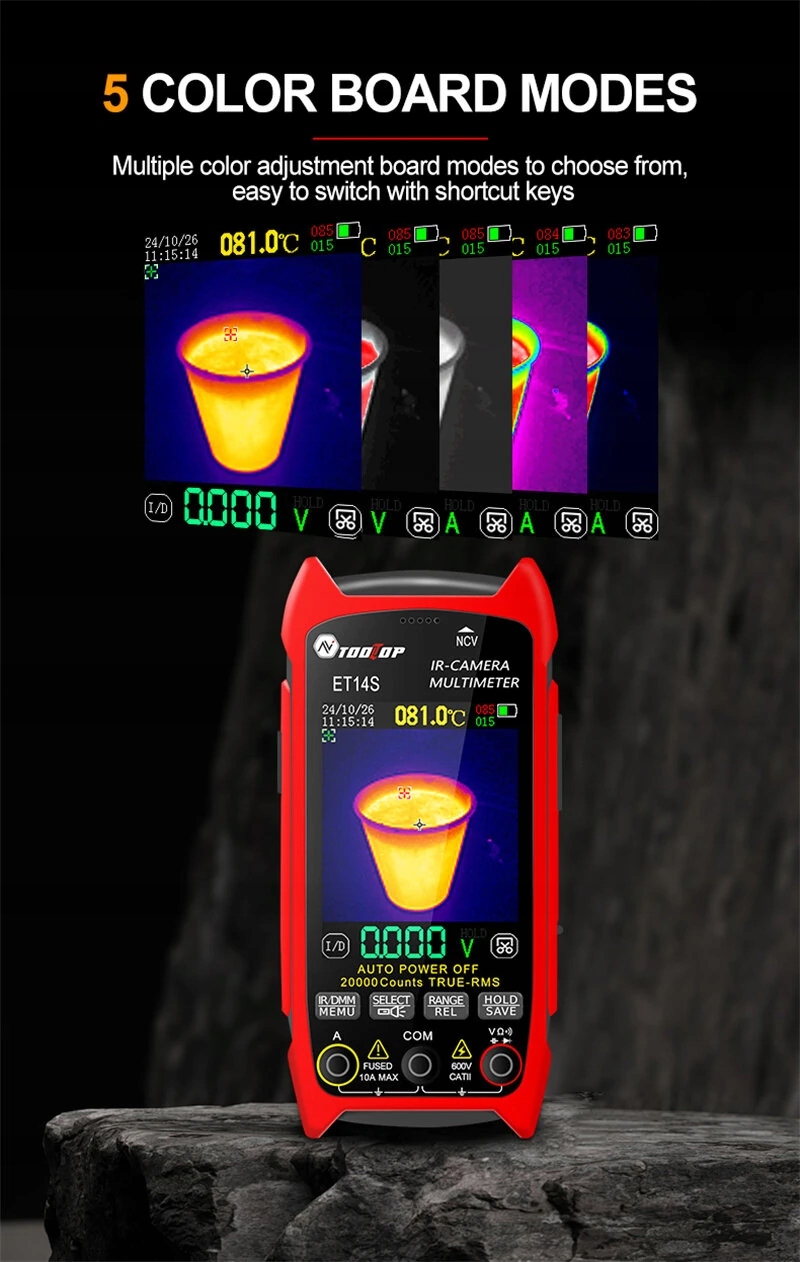

Color Board: 5 Types

DC Highest Input Voltage: 1000V

AC Highest Input Voltage: 750V

Maximum Current Measurement: 10A

Resistance Highest Measurement Resistance: 99.99MΩ

Capacitance Highest Measurement Capacity: 99.99mF

Duty Cycle Measurement Range: 0.1%~99.99%

Diode Measurement Range: 0V~3V

On-off Detection Maximum Resistance: 999.9Ω

Display Number: 9999 words updated about 3 times per second

NCV/LIN: NCV/LIN

Measuring Temperature: Built-in temperature & external thermocouple

Features:

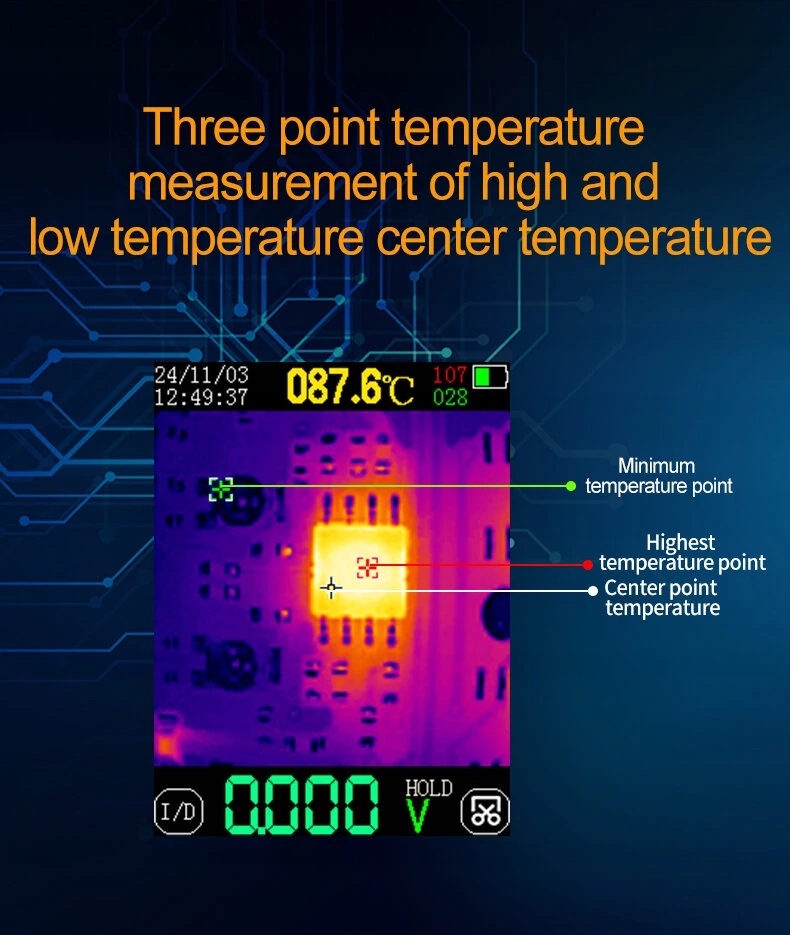

High Sensitivity Thermal Imaging: Equipped with ISR 240*240 thermal imaging pixels, it captures detailed temperature variations.

Wide Temperature Range: Measures temperatures from -20°C to +550°C, suitable for various applications.

Fast Image Capture: 25Hz image capture frequency ensures accurate and smooth thermal analysis.

Versatile Input Voltage Handling: Supports up to 1000V DC and 750V AC, catering to different electrical environments.

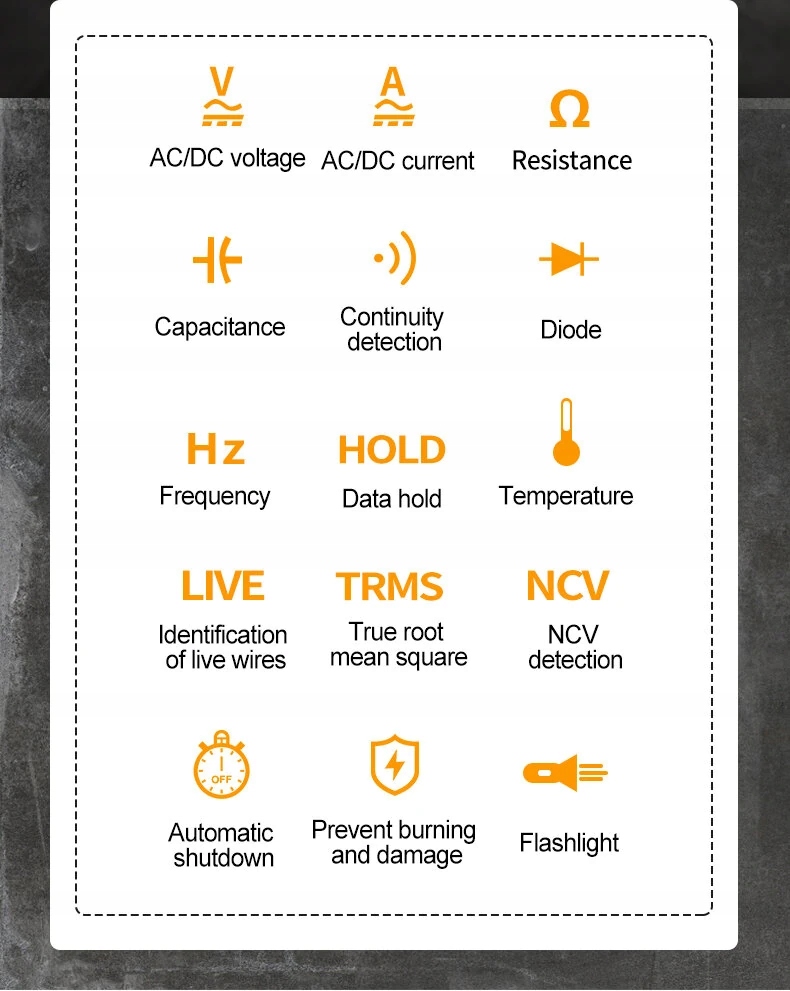

Comprehensive Measurement Capabilities: Includes resistance, capacitance, and current measurements with high precision.

Package Included:

MT14S:

1 x MT14S Thermal Imaging Multimeter

1 x Multimeter Probe

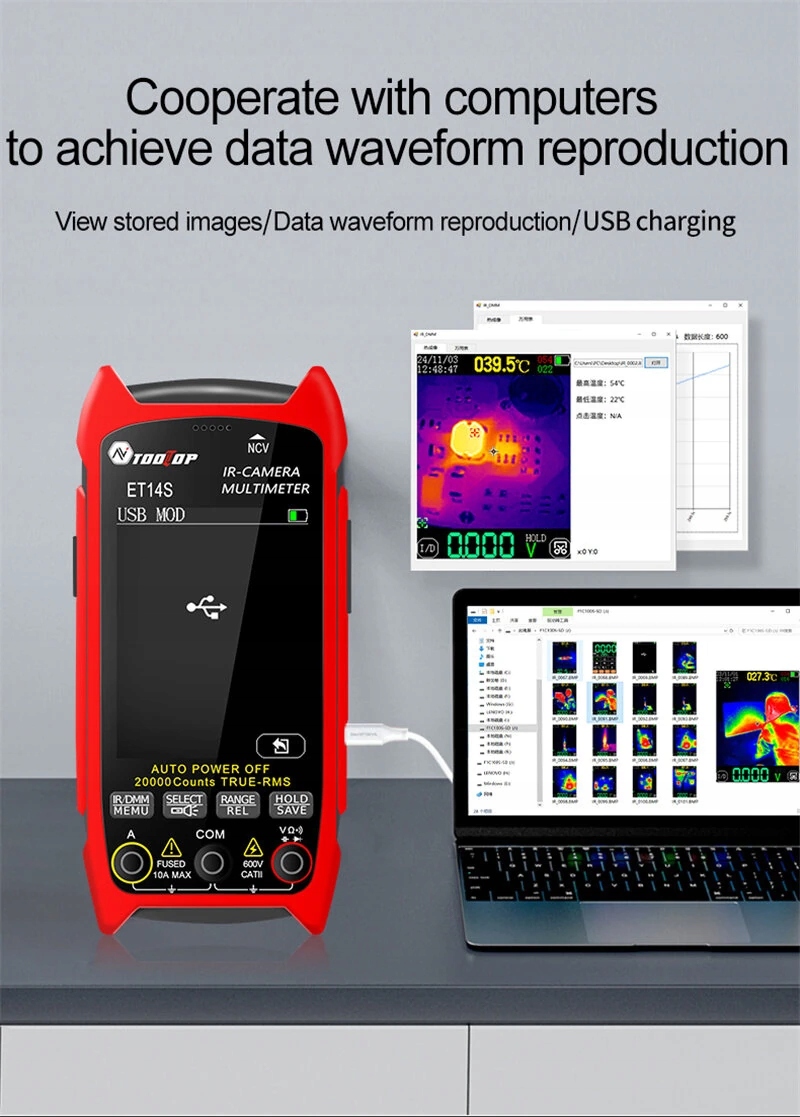

1 x Data Line

1 x Storage Bag

1 x User Manual

1 x Packing Box

MT14SPRO:

1 x MT14SPRO Thermal Imaging Multimeter

1 x Macro Lens(built-in)

1 x Multimeter Probe

1 x Data Line

1 x Storage Bag

1 x User Manual

1 x Packing Box
