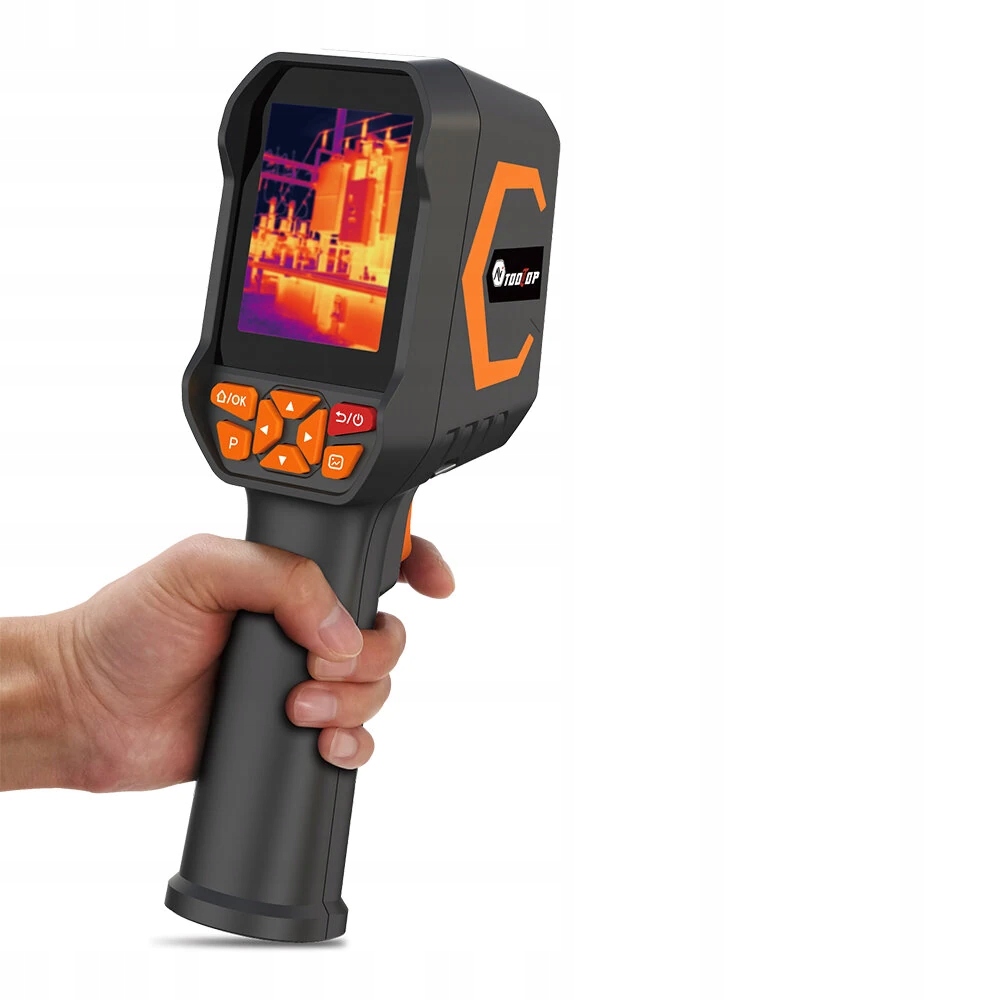

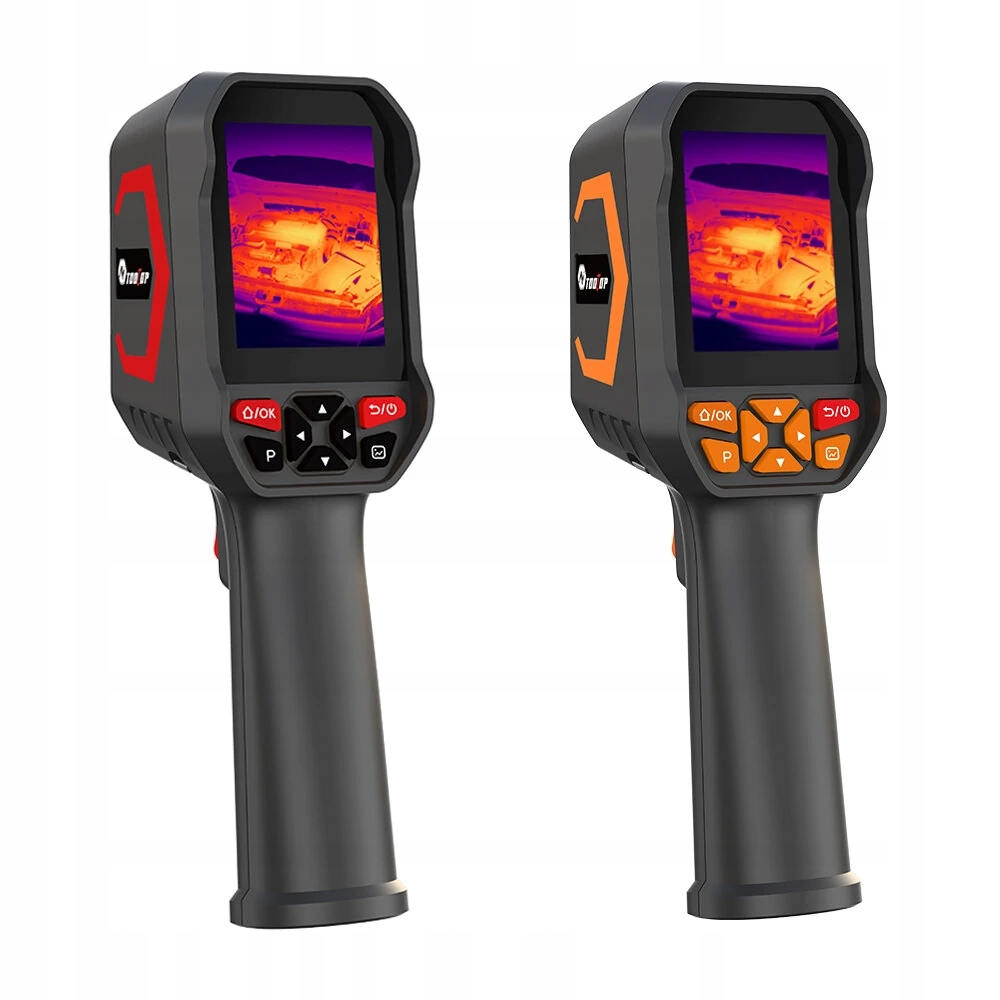

EU Direct AV TOOLTOP ET693B ET693C Thermal Imaging Camera 512*384 SUPER IR

EU Direct AV TOOLTOP ET693B ET693C Thermal Imaging Camera 512*384 SUPER IR

Specifications:

ET693B:

Resolution: 120 x 90

SUPER IR Resolution: 300 x 225

Working Band: 8~14μm

Pixel Size: 17μm

Frame Rate: 25Hz

NETD: 60mk@25℃

Field of View: 38° x 50°

Lens: 2.3mmF1.1

Temperature Measurement Range: -20°C~550°C

Temperature Measurement Accuracy: ±2°C or ±2% of reading

Temperature Measurement Modes: Full-screen hotspot, cold spot center point, regional temperature measurement

Temperature Compensation: Supports distance compensation within 2 meters

Color Palette Options: Iron, white hot, black hot, rainbow, red hot, high contrast, coldest

Screen Size: 2.8 inches

Image Mode: Thermal image

Languages Supported: English, French, Spanish, Portuguese, German, Polish, Russian, Arabic, Japanese, Korean, Chinese

Interface: USB Type-C (supports charging and data transfer)

Laser Pointer: Supported

LED Lighting: Supported

Storage Capacity: 8G built-in memory, usable storage of 6.19G, capable of saving over 20,000 pictures

ET693C:

Infrared Resolution: 256x192 (SUPER IR: 512x384)

Working Band: 8~14µm

Pixel Size: 12µm

Frame Rate: 25Hz

NETD: 50mk@25°C

Field of View (FOV): 42° x 56°

Lens: 3.2mm F1.1

Temperature Measurement Range: -20°C~550°C

Temperature Measurement Accuracy: ±2°C or ±2% of reading

Measurement Modes: Full-screen hotspot, cold spot, center point, regional temperature measurement

Temperature Compensation: Supported for distances within 5 meters

Visible Light Resolution: 1080P

Visible Light Field of View: 55° x 83°

Screen Size: 2.8 inches

Color Palettes: Iron, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Coldest

Image Modes: Outline fusion, overlay fusion, picture-in-picture, single infrared, single visible light

Languages Supported: English, French, Spanish, Portuguese, German, Polish, Russian, Arabic, Japanese, Korean, Chinese

Interface: USB Type-C (Charging and Data Transfer)

Built-in Storage: 8GB, actual usable storage 6.19GB (stores more than 20,000 images)

Laser Pointer and LED: Supported

Features:

1.High Resolution Imaging

With a SUPER IR resolution of 300 x 225 and a NETD sensitivity of 60mk@25°C, this thermal camera captures clear and precise heat patterns, making it ideal for detailed diagnostics.

2.Wide Temperature Measurement Range

Measures temperatures as low as -20°C and as high as 550°C, offering versatility across industrial inspections, home diagnostics, and professional applications.

3.Customizable Color Palettes

Choose from nine color palette modes like iron, black hot, and rainbow to match varying environmental conditions and enhance visual analysis during inspections.

4.Multi-Language Support

Equipped with 12 language options, including English, Spanish, and Chinese, to facilitate global usability and user-friendly operations across different regions.

5.Built-in Storage for Efficiency

Features 8GB of built-in storage with an actual capacity of 6.19GB, enabling the device to save over 20,000 thermal images, ensuring ample storage during field work.

Package Included:

1 x AV TOOLTOP Thermal Camera

1 x USB Type-C Cable

1 x Lanyard

1 x User Manual
