CC1101 Wireless RF Transceiver with SMA Antenna - For 315/433/868/915M

【High-Quality Materials, 】: Made of high-quality materials, this CC1101 wireless RF transceiver module is designed to be and long-lasting. 【Continuous Frequency Band Expansion】: The CC1101 supports continuous frequency band expansion, including the CC1100 (400-464 MHz and 800-928 MHz) and CC1101 (387-464 MHz and 779-928 MHz) modules. 【Wide Working Voltage and Frequency Range】: With a working voltage of 1.8-3.6V and a working frequency range of 387-464MHz, this wireless module offers excellent performance. 【Flexible Modulation and Reliable Data Transmission】: The CC1101 supports 2-FSK, GFSK, and MSK modulation, ensuring reliable data transmission. It features a built-in hardware CRC error detection for accurate and secure data transfer. 【Low Power Consumption and Programmable Features】: Featuring low power consumption, this wireless module supports programmable features such as output power adjustment and frequency programming via SPI. It also has a WOR function for reduced power consumption. Product description

Product parameters:

Made of high-quality materials,

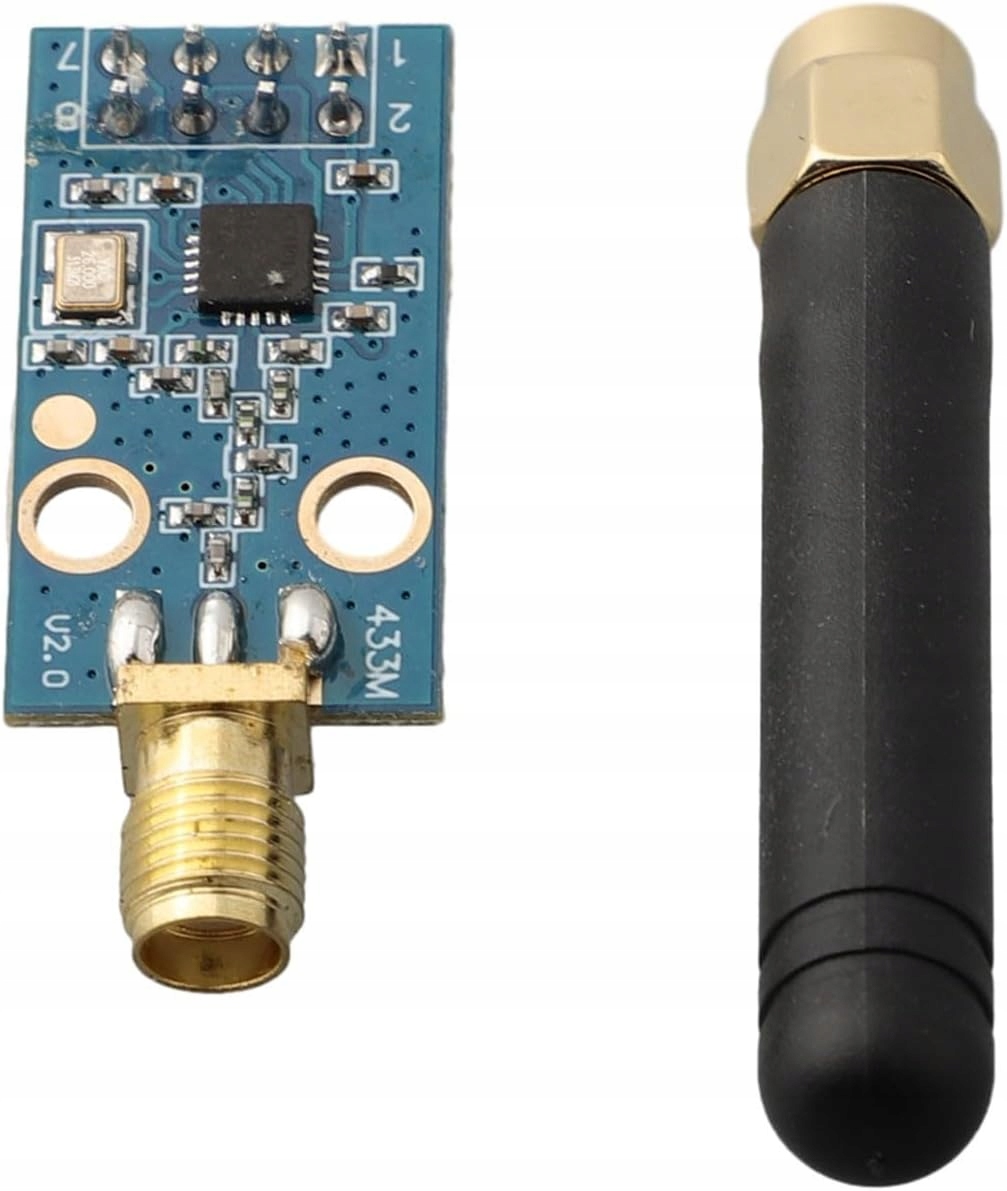

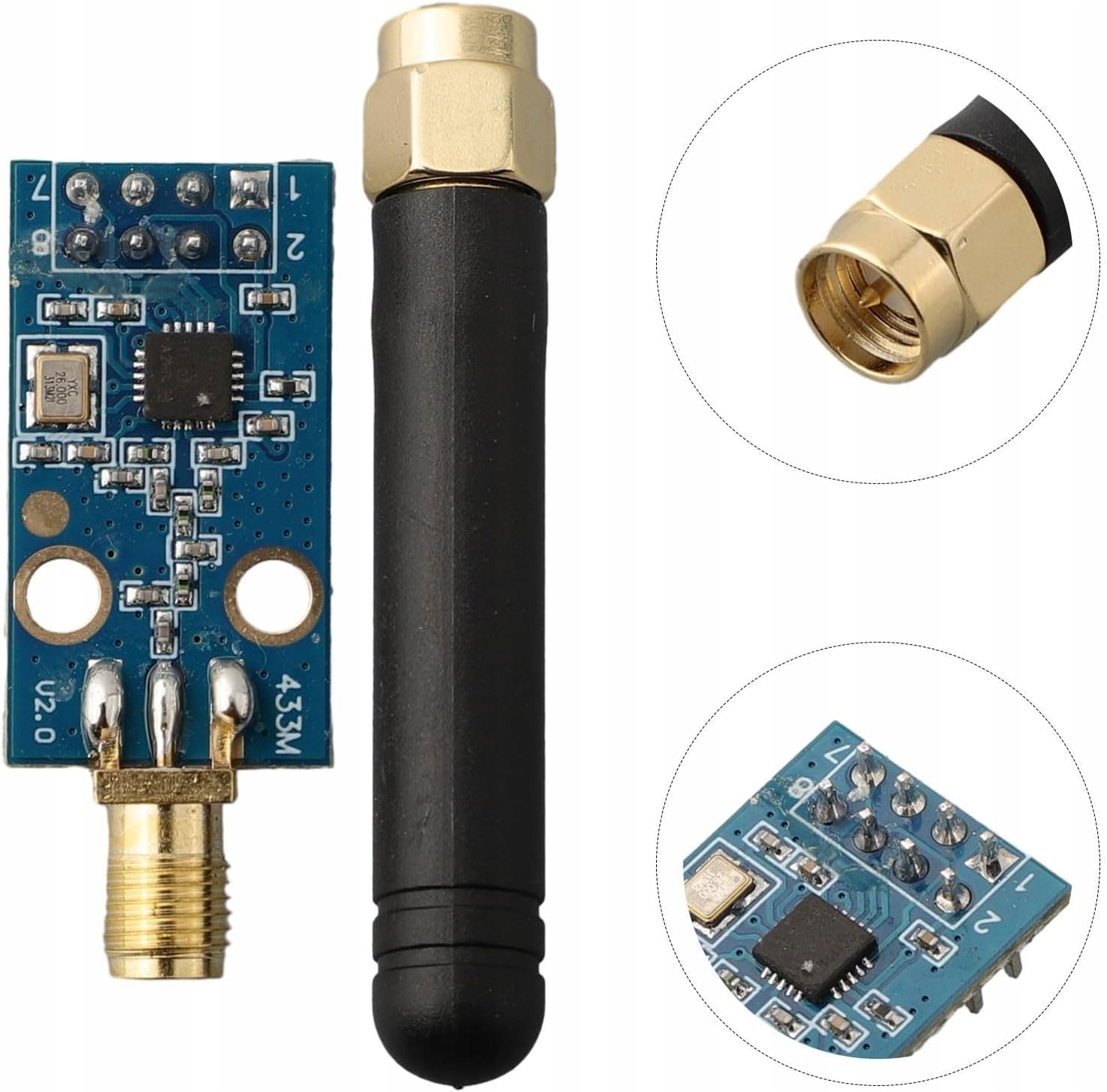

CC1101 wireless RF transceiver 315/433/868/915MHZ SMA antenna wireless module

Continuous frequency band expansion:

CC1100: 400-464 MHz and 800-928 MHz

CC1101: 387-464 MHz and 779-928 MHz

Working voltage: 1.8-3.6V

Working frequency: (module: 387-464MHZ) Default working frequency: 433Mhz

Maximum instantaneous working current: <30mA;

Maximum transmit power: 10mW ( 10dBm)

Support 2-FSK, GFSK and MSK modulation;

Receiver sensitivity -110dBm, 1200 baud

The minimum operating speed is 1.2kbps, the maximum is 500kbps

64-byte RX and TX data FIFO buffer

Built-in hardware CRC error detection to ensure reliable data transmission

Support RSSI signal strength detection and carrier sensing functions

Low power consumption

Mailing address (256) Working frequency can be programmed via SPI

Programmable output power, supporting all frequencies up to 10 dBm

WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption

Fast frequency synthesizer with proper frequency hopping system

Package list:

1 * wireless module

1 * Antenna
