Pompa odpływowa do pralki LG 5859EN1004J

SKL

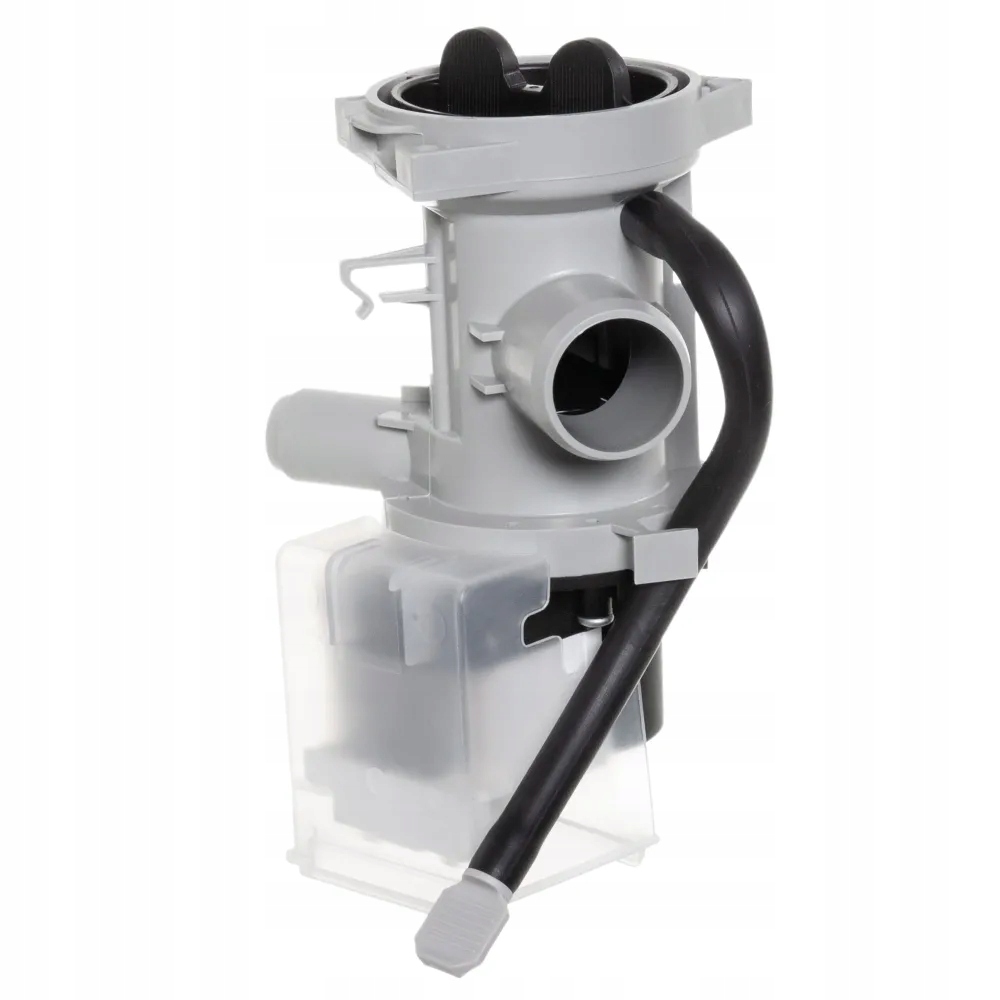

Pompa odpływowa do pralki LG 5859EN1004B, 5859EN1004J, AHA73653501

⭐⭐⭐⭐⭐

✴️DANE TECHNICZNE

Kod producenta: AHA73653501

Inne pasujące kody producenta: 5859EN1004B, 5859EN1004J, AHA73653501

• ✔ Nowy produkt
• ✔ Kompatybilna z pralkami LG oraz innymi modelami
• ✔ Moc 30 W (0,3 A)
• ✔ Zasilanie 220–240 V / 50 Hz
• ✔ Trwałe wykonanie
• ✔ Łatwy montaż

Specyfikacja techniczna:

• Typ: pompa odpływowa do pralki
• Napięcie zasilania: ~220–240 V, 50 Hz
• Moc: 30 W (0,3 A)
• Mocowanie do obudowy („ślimaka”): 3 otwory na wkręty
• Podłączenie elektryczne: 2 konektory 6,3 mm
• Położenie konektorów: z tyłu względem wirnika
• Układ styków: oddzielne

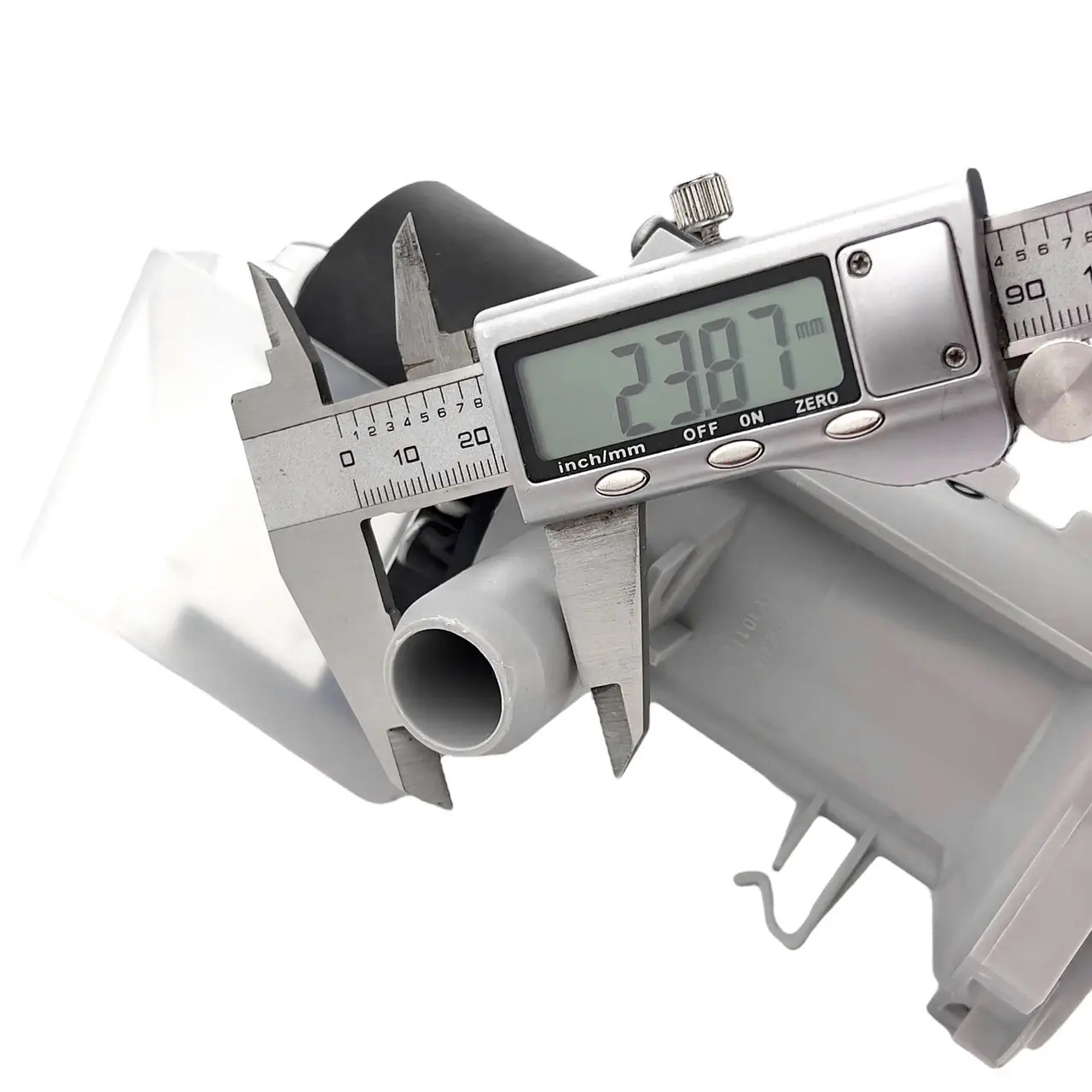

• Średnica króćców (wewnętrzna/zewnętrzna):
• 29 / 35,5 mm
• 16 / 23 mm
• jeden króciec z gumową zaślepioną rurką
• Wymiary całkowite: 182 × 117 × 112 mm (±3 mm)

✅LISTA PASUJĄCYCH MODELI

Dla ułatwienia użyj CTRL+F i wpisz model swojego urządzenia

✔️LG AQWQESW, DD137MWWM, DD147MWN, DD147MWWB, DD147MWWM, DWD14400TD, DWD16112FD, ELF1200, F1068LD, F1068QD, F1088LD, F1088QD, F1089ND, F1089QD, F1091LD, F1091QD, F1092ND, F1092QD, F1096NDA, F10B8NDA7, F10B8NDPA, F10B8QDA7, F10B8TDW, F10B9LD, F10B9QDW, F10C3LD, F1256LD, F1256QD, F12601D, F1268LD, F12700WH, F12710WH, F12721WH, F12725SL, F1273NDP, F1289ND, F1289TD1, F1291LD, F1291QD, F1292LD, F1292ND, F1292QD, F1292QDABWPCOM, F1296NDA, F1296NDA3, F12B8ND, F12B8ND0ABWQEPL, F12B8ND1, F12B8QD1, F12B8TD, F12B8TDA, F12B9LD, F1391QD, F1411TDP, F1443KD, F1468QDP, F1468QDPABWQERO, F14710WH, F14721WH, F1473QD, F1473QDPABWQECZ, F147M2B, F147W2DB, F14822WH, F1491QDABWQEDG, F1491QDABWQENE, F1491QDABWQERO, F1491QDABWQESW, F1491QDABWQSCH, F1491QDBABWQEBE, F1492QD, F1492QD1, F1492TD, F1492TDWABWQENB, F1496QD1, F1496QD3, F1496QDA3, F1498TDABWQEDG, F14AW7, F14B8QD1ABWQEDG, F14B8QDA, F14B8QDA1, F14B8QDA7, F14B8SAT, F14B8TD, F14B8TDA1, F14B8TDA7, F14B8TDABWQEDG, F14B8TDN1, F14B9QDA, F14B9QDABWQEDG, F14B9QDN, F72680WH, F72681WH, F72684WH, F72695SL, F72700WH, F72735SLALSQEFS, F72791WH, F72880WH, F72890WH, F72892WH, F74670WH, F74690WH, F74771WH, F74882WH, F74890WH, F74892WH, F82882WH, F82890WH, F84802WH, F84882WH, F84890WH, FWD1074FB, FWD1274FB, FWD1280FD, FWD1480FD, FWD1485FD, GSI1600E, LD12BM0, LD12BS9, LD12BW5, LD12BW8, LD2030M, LD2030S, LD2030W, LD2030WH, LD2033MH, LD2033NH, LD2040MH, LD2050MH, LD2051MH, LD2060LH, LD2120MHU, MSQEIS, NWD13151FB, NWD16400FD, VOLUMINA65100, VOLUMINA65120, WA1000, WA1300, WD10112FD, WD10120FB, WD10130F, WD10130FU, WD10130NUP, WD10131F, WD10140T, WD10150FB, WD10150N, WD10150NP, WD10150NUP, WD10150SUP, WD10150TP, WD10150TUP, WD10151TP, WD10151TUP, WD10152TUP, WD10155TP, WD10155TUP, WD10160, WD10160F, WD10160TUP, WD10162FU, WD10170ND, WD10170TD, WD10180N, WD10180SUP, WD10180TUP, WD1020W, WD1021W, WD10230FB, WD10260T, WD10262TP, WD10263TP, WD10264NP, WD10264SP, WD10264TP, WD10300TP, WD10300UP, WD10302NUP, WD10302SUP, WD10302TUP, WD1030RD, WD10382TP, WD10390ND, WD10390NDK, WD10391TDK, WD10417TBX, WD1041FB, WD1041W, WD1041WF, WD1041WFH, WD1042F, WD1043FB, WD1045F, WD1045FH, WD10480T, WD10480TP, WD10481NP, WD10483TP, WD10485TP, WD10490NP, WD10490TP, WD1050F, WD1050FB, WD1050FHB, WD1054FB, WD1055F, WD1055FB, WD1055FHB, WD10600SD, WD1060FD, WD1061FD, WD1065FD, WD1066FD, WD10700MD, WD10700MDS, WD10701MD, WD1070FB, WD1071FB, WD1074FB, WD10801T, WD1080FD, WD1090FB, WD11120FB, WD11150FB, WD1174FB, WD1176, WD1176FB, WD1190FB, WD12111FDB, WD12112FD, WD12120FB, WD12121TD, WD12124RD, WD12126RD, WD12150FBAOWQEDG, WD12151FB, WD12152FB, WD12170ND, WD12170TD, WD12175ND, WD12210BD, WD12230FB, WD12231TB, WD12235FB, WD1223FB, WD1225F, WD12270BD, WD12320FD, WD12330CDP, WD12331CDPABWQEFS, WD12360ND, WD12360SD, WD1236SD, WD12380TB, WD12380TP, WD12390ND, WD12390NDK, WD12391TD, WD12400TDK, WD1243FB, WD1243FH, WD12440ND, WD12440NDK, WD1244ND, WD1245FB, WD1245FHB, WD12470BDM, WD12480NP, WD12480TP, WD12481TP, WD12485TP, WD12490NP, WD12490TP, WD1253FB, WD1253FHB, WD1254FB, WD1255F, WD1255FB, WD1255FHB, WD1256FB, WD1260FD, WD1260FHD, WD1261FD, WD12655TP, WD1265FD, WD1265FHD, WD12703MDABWQEES, WD1271FB, WD1274FB, WD1274FBN, WD1276FB, WD1280FD, WD1285FD, WD1290FB, WD1295FB, WD13155FB, WD13230FD, WD1370FHB, WD1390FB, WD14110FD, WD14110FDQ, WD14111FDB, WD14112FD, WD14112FDI, WD14115FD, WD14115FDF, WD14115FDN, WD14120FD, WD14121FD, WD14124RD, WD14125FD, WD14126FD, WD14126RD, WD14320FD, WD14336RD, WD14350FD, WD14360TD, WD14365TD, WD14380TB, WD14390TDP, WD14391TD, WD14393TDP, WD14400TD, WD14401TB, WD14401TD, WD14406TD, WD14480TP, WD14481T, WD14481TP, WD14482TP, WD1460FD, WD1460FHD, WD1461FD, WD1465FD, WD1465FHD, WD1466, WD1466FD, WD14701TDP, WD14706TDP, WD1480FD, WD1480FDAOWQEDG, WD1480FDF, WD1480FDI, WD1484FD, WD1485FD, WD1485FDF, WD1485FDN, WD16101FD, WD16106FD, WD16110FD, WD16110FDQ, WD16115FD, WD16115FDF, WD16115FDN, WD16200FD, WD16205FD, WD16320FD, WD16400FD, WD282TP, WD381TP, WD481TP, WD482TP, WD485TP, WD65130F, WD65130NP, WD65130NUP, WD65150NP, WD65150NUP, WD65150TP, WD65150TUP, WD65160TP, WD6550F, WD6550FB, WD6590FB, WD80130F, WD80130NP, WD80130TUP, WD80140T, WD80150NP, WD80150NUP, WD80150SUP, WD80150TP, WD80151TP, WD80151TUP, WD80160TUP, WD80180S, WD80260T, WD80264NP, WD80264TP, WD80302TUP, WD8040F, WD80483TP, WD80490T, WD8050F, WD8050FB, WD8054FB, WD8070F, WD8070FB, WD8070FH, WD8074FB, WD8090FB, WD90150FB, WD90401TB, WFF5700PPK, WFF8409TP, WFF8609TP, WFS1003TP, WFS5207PPK, WFS5700PPX, WFT1001TP, WFT1022TP, WFT1022TPS, WFT1031TP, WFT1092TP, WFT5005PP, WFT6001TPS, WFT6005TP, WFT6105TFK, WFT8009TP, WFT8016TPS, WFT8500TP, WFT8519TP, WM1090FHB, WM1095FB, WM1095FHB, WM1170FHB, WM1171FHB, WM1175FHB, WM1176FHB, WM1280FHD, WM1285FHD, WM1290FHB, WM1295FHB, WM1371FHB, WM1375FHB, WM1376FHB, WM1480FHD, WM1485FHD, WM16100FD, WM16105FD, WM16110FD, WM16115FD, WTR1071TP, MSQEIS, WD1020W, WD1021W, WD1021WF, WD1030R, WD1041WF, WD1042F, WD1042FH, WD1045F, WD1050F, WD1055F, WD1223FB, WD1225F, WD1243F, WD1243FB, WD1245FB, WD1255F, WD1255FB, WD1460FD, WD6550F, WD80302SUP, WD80302TUP, WD8040WF, WD8050F, WDS1041WF, WDS1245F, F1022ND
