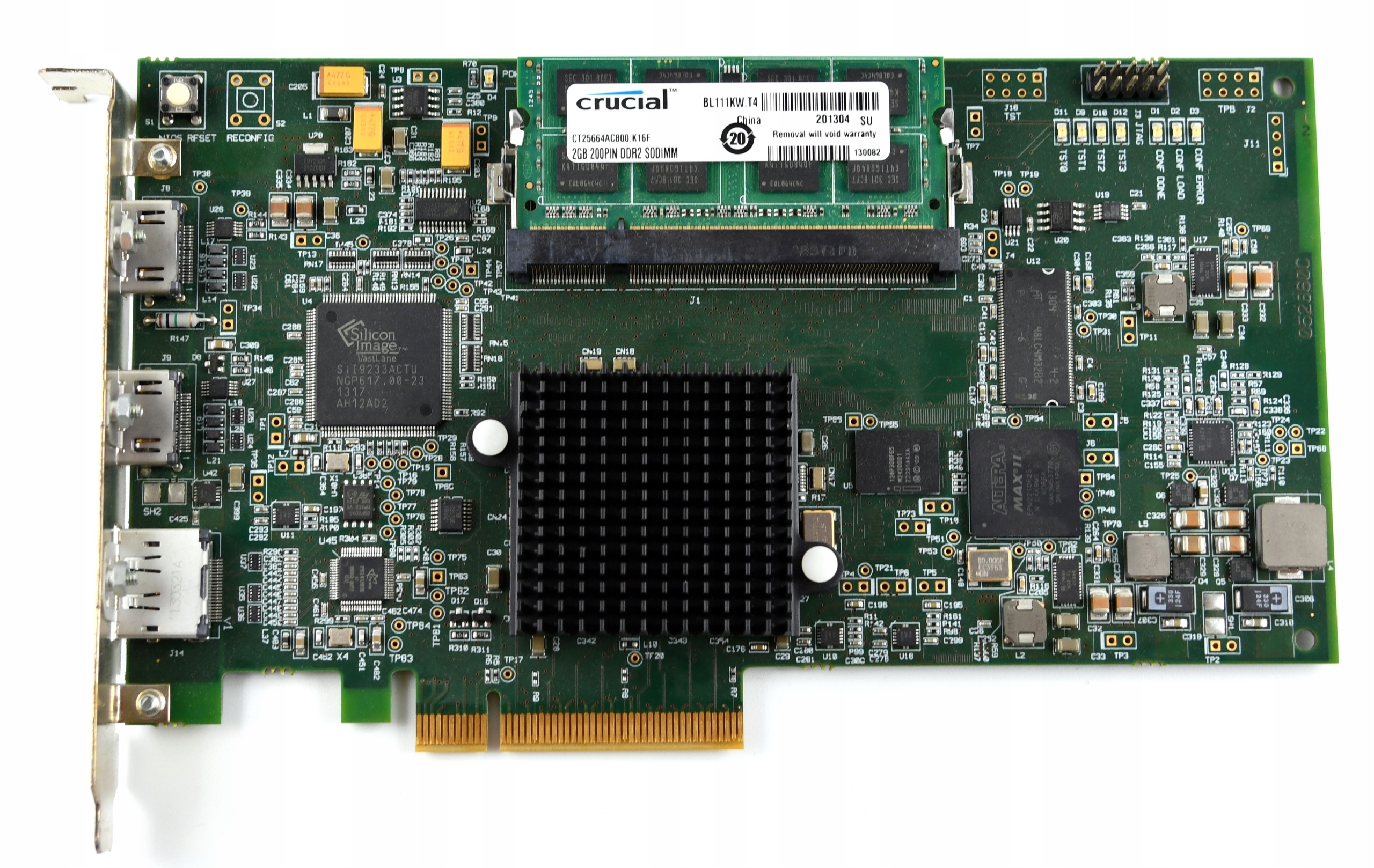

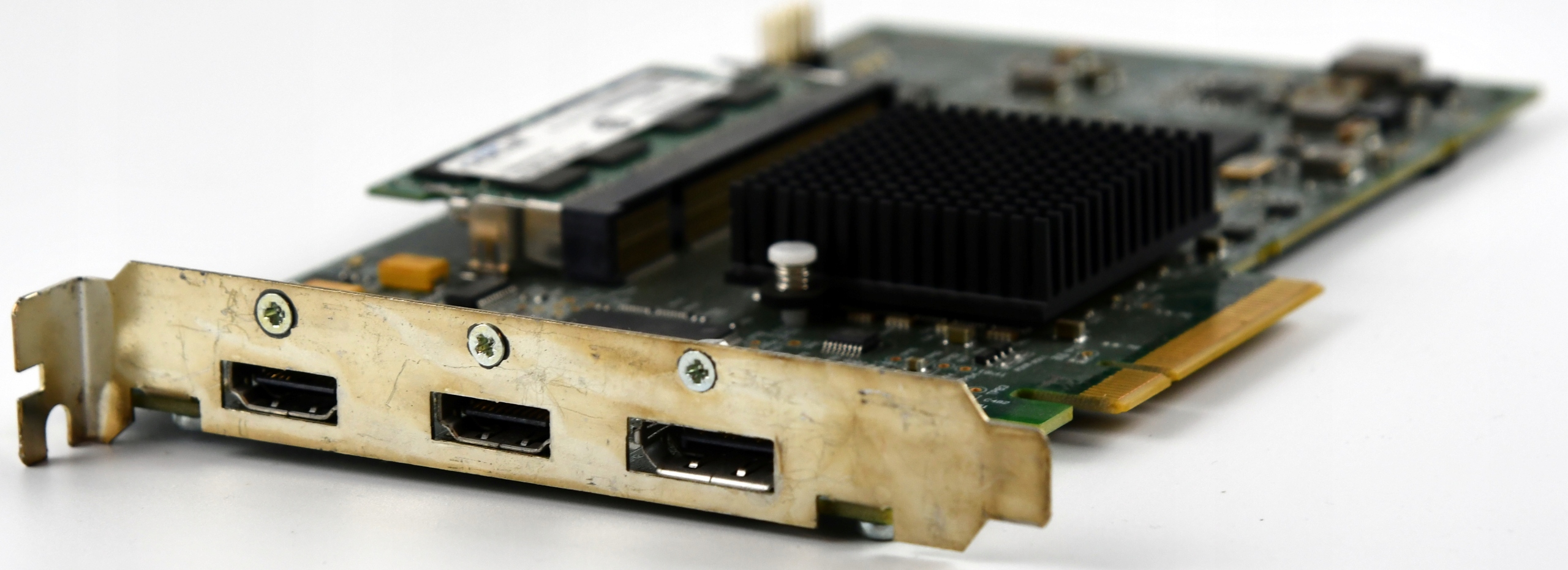

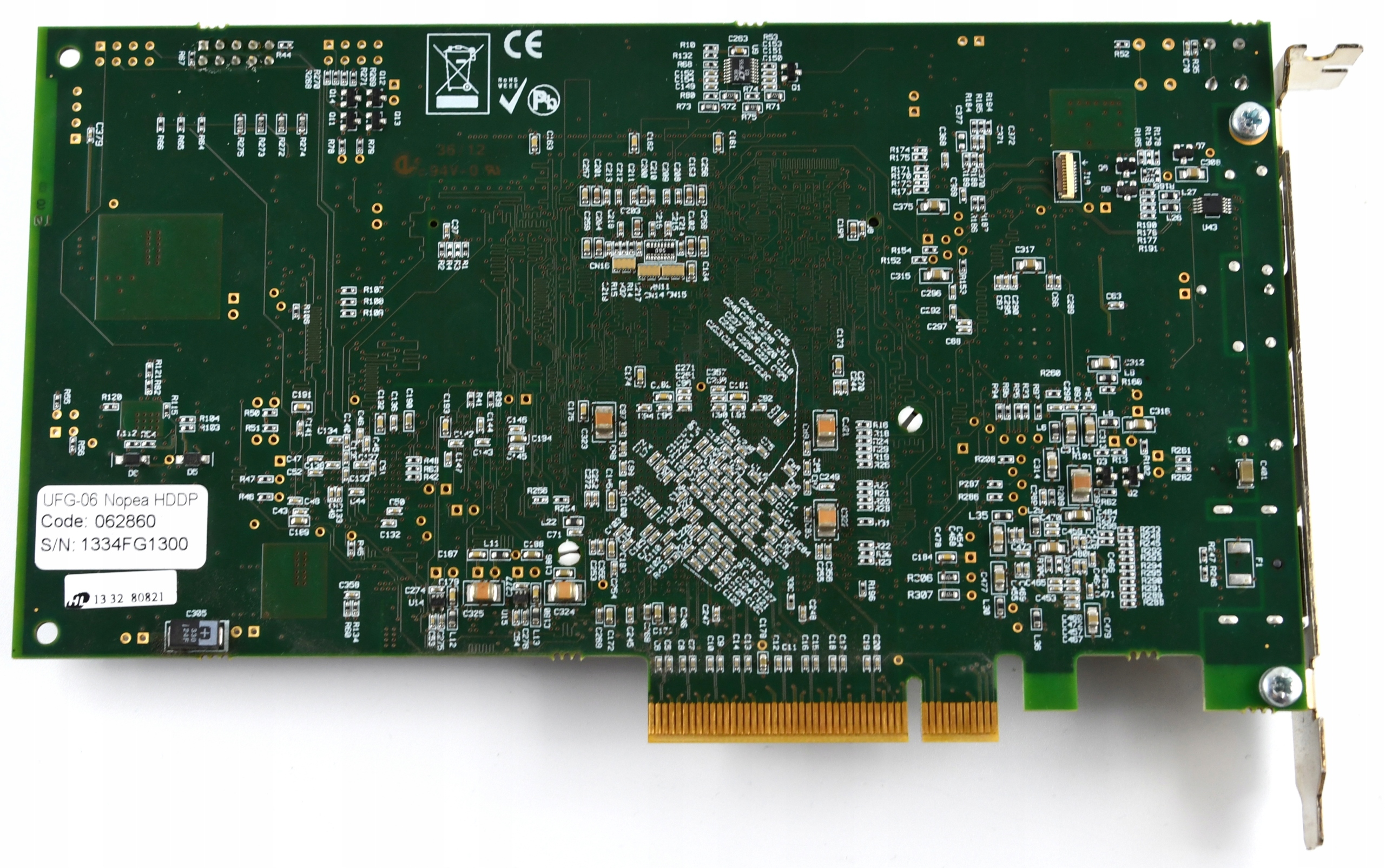

The practically limitless speed of UFG-06 Nopea capture board enables your full creativity with video and audio design. You can now concentrate on your main task – there are no захват bottlenecks effecting your work. With full compatibility to any HDMI 1.4 and DisplayPort™ source up это 1080p60 or 1920x1200p60, video and audio contents will be captured frame by frame with the original speed. The high native capture rate means that your материал, will be transferred to the PC without any dropped frames or compression. Both of these advantages ensure that captured stream is as close to the original as possible. Any dropped frames will make the streamed video unnecessarily fuzzy and compromise your high quality материал. With full DirectShow support UFG-06 Nopea can be used with any compatible Windows 7, Vista or XP streaming application. All powerful features of the board are readily available.

Benefits

• Full Frame Rate захват up to1920x1200p60
• Video and Audio streaming through DirectShow or the API
• Full HDMI 1.4 Deep Color capture with 3D support
• DisplayPort™ compatibility
• 8-lane PCIe bus, over 1.2 GB/s
• SDK with DLL library

Analyze Video, Audio, CEC and Metadata When used with UFG-06 test frame grabber, Unigraf UTS test functions get full access to the data sent over the HDMI link and the related metadata. By selecting the tests to run, the user will get to know exactly the behavior of the Source and reveal issues when debugging interoperability problems. Unigraf UTS functions will verify the fidelity of the captured images frame to frame, pixel to pixel, bit bit. UTS will reveal problems that cannot be detected with bare eye observation. UTS functions are also able to verify CEC (consumer electronics control), ARC (audio return channel) and HEC (HDMI Ethernet channel) functions of the Source Device. With the provided Quick Preview application the user can capture embedded audio received through the HDMI interface. The audio can be stored as a file or played back with the PC аудио система. Quick Preview also enables the user to control HDMI 1.4 features like HDMI, Ethernet Channel and Audio Return Channel.

Features

HDMI 1.4, Deep Color and 3D Capture HDMI audio capture Supports HDMI Ethernet Channel (HEC) and ARC (Audio Return Channel) Supports Consumer Electronics Control (CEC) Up to 1920x1200@60 (RB) and 1080p60 Full HD Up to 12 bits per color depth Capture without dropped frames User programmable EDID Ultra high speed 8-lane PCIe bus
